日本ULVAC爱发科热阴极真空计WIB-G5(Φ18)/WIT-G1

日本ULVAC爱发科热阴极真空计WIB-G5(Φ18)/WIT-G1

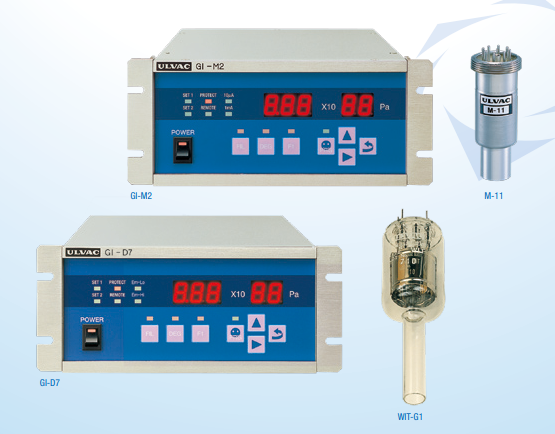

FeaturesMeasures a Wide Pressure RangeCan measure a wide pressure range from 9.9 to 5×10-8Pa (GI-M2)(7.4×10-2 to 3.75×10-10 Torr, 9.9×10-2 to 5×10-10 mbar)2 Types Vacuum Tube, Metal and GlassSensor head selected depending on the application (bare type alsoavailable)Strong Metal Vacuum TubeSmall-sized metallic sensor head prevents it from breaking (GI-M2)Sensitivity SetupSensitivity setup can be changed for different gases. Allowing evenmore accurate pressure measurement.Range Hold FunctionIdeal for fixing the measurement rangeControl Output Signal2 set point outputOperable at Whole Function Front PanelSwitch 1/2 filament, sensitivity setting, range hold function, degasfunctionSerial Communication SpecificationRS232C communicationDigital OutputBCD outputMeasured Value Output SignalPressure is 0 to 10V Log output (psudo-log output)ApplicationsGI-M2Sputtering systemVacuum evaporation system (turbomolecular pump type)Pressure measurement for other general ultra-high vacuum pumpingsystemGI-D7Vacuum heat treatment furnaceVacuum brazing furnaceVacuum evaporation system (diffusion pump type)Process control for furnaces and other industrial equipment
