日本妙德convum真空发生器MC22-S10HSVGL4BLR
发布时间：2024-09-27
日本妙德convum真空发生器MC22-S10HSVGL4BLR
日本妙德convum真空发生器MC22-S10HSVGL4BLR
日本妙德convum真空发生器MC22-S10HSVGL4BLR
日本妙德convum真空发生器MC22-S10HSVGL4BLR

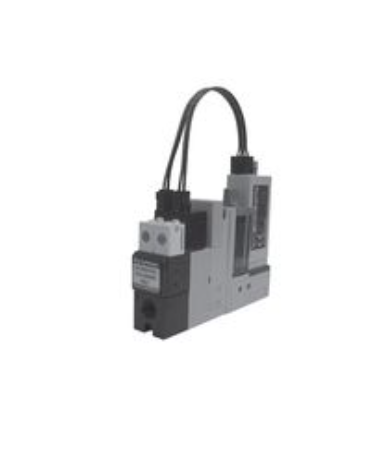

Vacuum Ejector Unit, MC22 Series (MC22S05HSVGL4BLR)
Part Number: MC22S05HSVGL4BLR
• Main Body Shape: Unit
• Body Material: Aluminum
• Vacuum Port Connecting Port Shape: M5
• Operating Pressure Range (mpa): 0.2::0.5
• Operating Temperature Range (?): 0::50
Configured Specifications
Download
| Main Body Shape | Unit | Additional Function | Pressure Switch for Mechanical Vacuum |
|---|---|---|---|
| Ultimate Vacuum Pressure(kPa) | -87 | Air Consumption Flow Rate(l/min) | 10 |
| Vacuum Port Connecting Port Shape | M5 | Air Supply Port Connecting Shape | Rc1/8 |
| Application | Single Item | Operating Pressure Range(MPa) | 0.2～0.5 |
| Ambient Temperature(°C) | 0～50 | Suction Flow(l/min) | 6 |
| Body Material | Aluminum | Nozzle Diameter | 0.5mm |
| Overall Length L(mm) | 86.6 | Details Type | No check valve |
| Pressure Switch | MPS-V23 | Number of circuits (only in the case of manifold) | - |
| Electromagnetic Valve Voltage | DC24V | Electromagnetic Valve Wiring Method | Connector with lead wire |
| Unit Body Mounted number (only in the case of a manifold) | - | The setting method(only for manifold) | - |
| Rated Pressure(MPa) | 0.5MPa | Supply Air Passage State | Normally Closed |
| Compatible Fluid | Oil-less compressed air | - | - |
