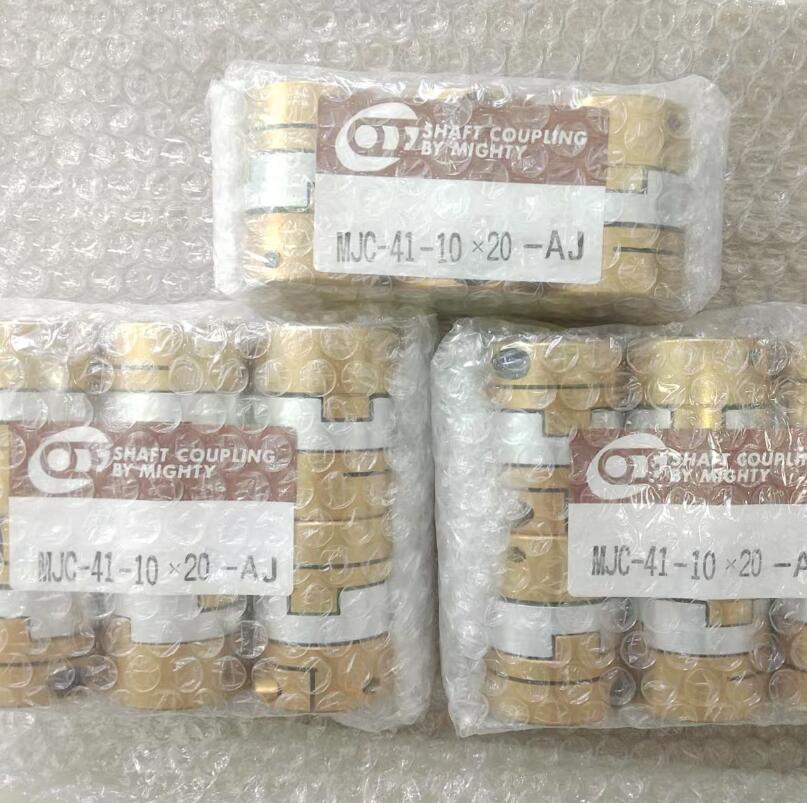

日本威武Mighty联轴器MJC-41-10X20-AJ
发布时间：2024-10-09
日本威武Mighty联轴器MJC-41-10X20-AJ
日本威武Mighty联轴器MJC-41-10X20-AJ
Flexible Shaft Coupling (MJC-41-10X20)
Oldham, Clamping, MJC Series
Part Number: MJC-41-10X20
•Application : Encoder, Servo Motor, Standard, Stepping Motor
•Body Material : Aluminum Alloy
•Allowable Misalignment : Angular, Eccentricity
•Feature : High Accuracy, High Durability, No Backlash, Vibration Insulation
For complete product overview and details on Oldham Coupling, MJC Series see the sections below:
Configured Specifications
| Type | Oldham | Allowable Misalignment | Angular Misalignment / Eccentricity |
|---|---|---|---|
| Application | Standard / Servo Motor / Stepping Motor / Encoder | Allowable Torque Range(N⋅m) | 10.01 to 20.00 |
| For Shaft Size D1(mm) | 10 | For Shaft Size D2(mm) | 20 |
| Outer Diameter A(Ø) | 41.3 | Overall Length W(mm) | 50.8 |
| Features | High accuracy / High durability / Backlash 0 / Vibration Absorption | Body Material | [Aluminum] Aluminum Alloy |
| Allowable Torque(N⋅m) | 17 | Allowable Angular Misalignment(deg) | 1 |
| Allowable Lateral Misalignment Range(mm) | 3.1 to 5.0 | Allowable Lateral Misalignment(mm) | 5 |
| Buffer Part Material | Polyacetal | Moment of Inertia(kg·m2) | 3273X10-8 |
| Mounting Method | Clamping | Specification | Clamp locking |
| RoHS | 10 | - | - |
 | |||
