日本Panasonic松下伺服驱动器MCDKT3520CA1/200V
发布时间：2024-10-11

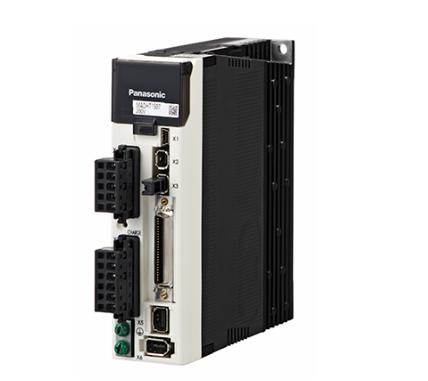

Panasonic松下伺服驱动器MCDKT3520CA1
Part Number | MCDKT3520 |
|---|---|
Product | Servo Driver |
Details | A5Ⅱ series |
Product Name | MINAS A5 Family Servo Driver (Discontinued) |
Features | 10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz |
| Item | Specifications |
|---|---|
| Part Number | MCDKT3520 |
| Product details | A5Ⅱ series Speed, Position, Torque, Full-closed type with the safety function |
| Family Name | MINAS A5 |
| Series | A5Ⅱ series |
| Type | Speed, Position, Torque, Full-closed type |
| Frame | C-Frame |
| Frequency response (kHz) | 2.3 |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with |
| Power device Max. current rating | 30A |
| Current detector current rating | 20A |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 65 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.6 |
| Environment | For more details, please refer to the instruction manual. |
scroll
scroll
scroll
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Input power: Control circuit | Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Encoder feedback | 17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| External scale feedback | A/B phase, homing signal differential input. Serial communication is also supported. |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Input | 3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs) |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB, RS232, RS485 |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RS232 | 1:1 communication |
| Communication function: RS485 | 1: n communication (max 31) |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control |
