111 Models (brakes) Specifications

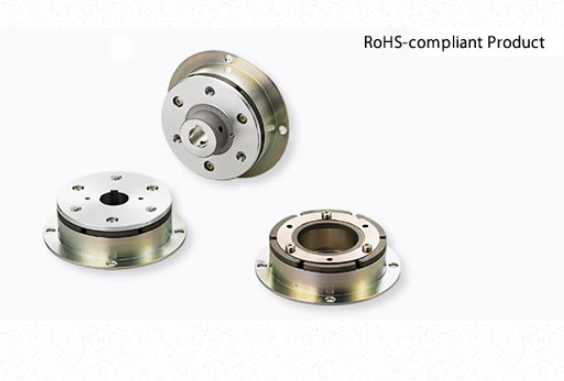

111 Models
[Specifications]
Model | Size | Dynamic friction torque Td [N・m] | Static friction torque Ts [N・m] | Coil (at 20℃) | Heat resistance class | Lead wire | Max. rotation speed [min-1] | Armature Moment of inertia J [kg·m2] | Total work performed until readjustment of the air gap ET [J] | Armature pull-in time ta [s] | Torque rise time tp [s] | Torque extinction time td [s] | Mass [kg] | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Voltage [V] | Wattage [W] | Current [A] | Resistance [Ω] | UL style | Size | ||||||||||||
111-06-13G | 06 | 5 | 5.5 | DC24 | 11 | 0.46 | 52 | B | UL3398 | AWG22 | 8000 | 4.23×10-5 | 36×106 | 0.015 | 0.033 | 0.015 | 0.28 |
111-06-12G | 06 | 5 | 5.5 | DC24 | 11 | 0.46 | 52 | B | UL3398 | AWG22 | 8000 | 6.03×10-5 | 36×106 | 0.015 | 0.033 | 0.015 | 0.32 |
111-06-11G | 06 | 5 | 5.5 | DC24 | 11 | 0.46 | 52 | B | UL3398 | AWG22 | 8000 | 6.03×10-5 | 36×106 | 0.015 | 0.033 | 0.015 | 0.32 |
111-08-13G | 08 | 10 | 11 | DC24 | 15 | 0.63 | 38 | B | UL3398 | AWG18 | 6000 | 1.18×10-4 | 60×106 | 0.016 | 0.042 | 0.025 | 0.5 |
111-08-12G | 08 | 10 | 11 | DC24 | 15 | 0.63 | 38 | B | UL3398 | AWG18 | 6000 | 1.71×10-4 | 60×106 | 0.016 | 0.042 | 0.025 | 0.58 |
111-08-11G | 08 | 10 | 11 | DC24 | 15 | 0.63 | 38 | B | UL3398 | AWG18 | 6000 | 1.71×10-4 | 60×106 | 0.016 | 0.042 | 0.025 | 0.58 |
111-10-13G | 10 | 20 | 22 | DC24 | 20 | 0.83 | 29 | B | UL3398 | AWG18 | 5000 | 4.78×10-4 | 130×106 | 0.018 | 0.056 | 0.030 | 0.91 |
111-10-12G | 10 | 20 | 22 | DC24 | 20 | 0.83 | 29 | B | UL3398 | AWG18 | 5000 | 6.63×10-4 | 130×106 | 0.018 | 0.056 | 0.030 | 1.07 |
111-10-11G | 10 | 20 | 22 | DC24 | 20 | 0.83 | 29 | B | UL3398 | AWG18 | 5000 | 6.63×10-4 | 130×106 | 0.018 | 0.056 | 0.030 | 1.07 |
111-12-13G | 12 | 40 | 45 | DC24 | 25 | 1.04 | 23 | B | UL3398 | AWG18 | 4000 | 1.31×10-3 | 250×106 | 0.027 | 0.090 | 0.050 | 1.68 |
111-12-12G | 12 | 40 | 45 | DC24 | 25 | 1.04 | 23 | B | UL3398 | AWG18 | 4000 | 1.81×10-3 | 250×106 | 0.027 | 0.090 | 0.050 | 1.97 |
111-12-11G | 12 | 40 | 45 | DC24 | 25 | 1.04 | 23 | B | UL3398 | AWG18 | 4000 | 1.81×10-3 | 250×106 | 0.027 | 0.090 | 0.050 | 1.97 |
111-16-13G | 16 | 80 | 90 | DC24 | 35 | 1.46 | 16 | B | UL3398 | AWG18 | 3000 | 4.80×10-3 | 470×106 | 0.035 | 0.127 | 0.055 | 3.15 |
111-16-12G | 16 | 80 | 90 | DC24 | 35 | 1.46 | 16 | B | UL3398 | AWG18 | 3000 | 6.35×10-3 | 470×106 | 0.035 | 0.127 | 0.055 | 3.45 |
111-16-11G | 16 | 80 | 90 | DC24 | 35 | 1.46 | 16 | B | UL3398 | AWG18 | 3000 | 6.35×10-3 | 470×106 | 0.035 | 0.127 | 0.055 | 3.45 |
111-20-13G | 20 | 160 | 175 | DC24 | 45 | 1.88 | 13 | B | UL3398 | AWG16 | 2500 | 1.37×10-2 | 10×108 | 0.065 | 0.200 | 0.070 | 5.9 |
111-20-12G | 20 | 160 | 175 | DC24 | 45 | 1.88 | 13 | B | UL3398 | AWG16 | 2500 | 1.90×10-2 | 10×108 | 0.065 | 0.200 | 0.070 | 7.1 |
111-20-11G | 20 | 160 | 175 | DC24 | 45 | 1.88 | 13 | B | UL3398 | AWG16 | 2500 | 1.90×10-2 | 10×108 | 0.065 | 0.200 | 0.070 | 7.1 |
111-25-13G | 25 | 320 | 350 | DC24 | 60 | 2.5 | 9.6 | B | UL3398 | AWG16 | 2000 | 3.58×10-2 | 20×108 | 0.085 | 0.275 | 0.125 | 10.5 |
111-25-12G | 25 | 320 | 350 | DC24 | 60 | 2.5 | 9.6 | B | UL3398 | AWG16 | 2000 | 4.83×10-2 | 20×108 | 0.085 | 0.275 | 0.125 | 12.2 |
111-25-11G | 25 | 320 | 350 | DC24 | 60 | 2.5 | 9.6 | B | UL3398 | AWG16 | 2000 | 4.83×10-2 | 20×108 | 0.085 | 0.275 | 0.125 | 12.2 |
*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1. Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.
*The rotating part moment of inertia and mass are measured for the maximum bore diameter.

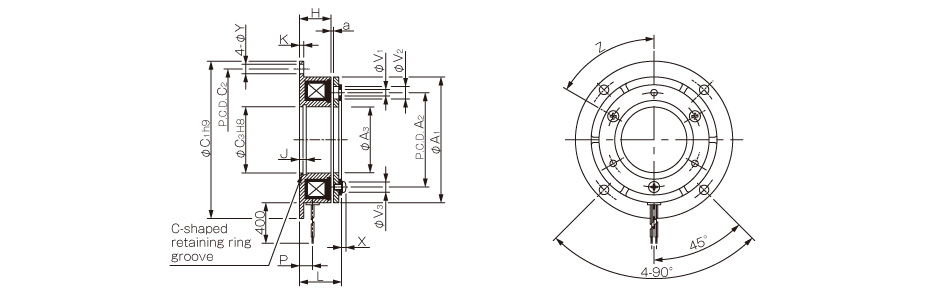

[Dimensions]
111-□-13G
