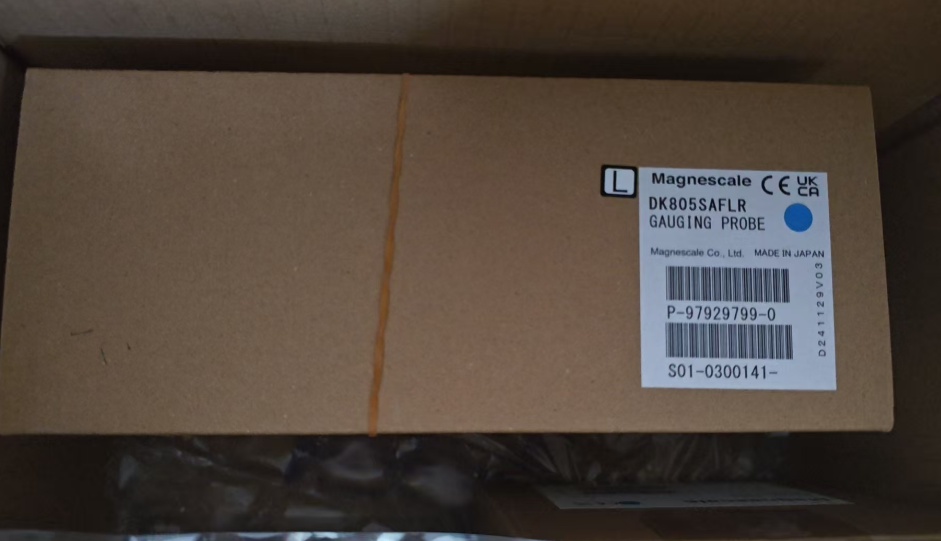

日本Magnescale索尼位移传感器DK805SAFLR
日本Magnescale索尼位移传感器DK805SAFLR
Product TOP

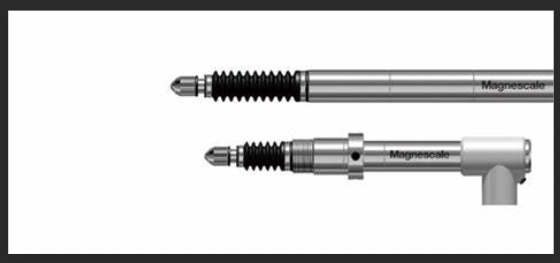

Slim shape with stem diameter of Φ8 mm and high durability ball spline bearing.
Our unique signal processing technology enables measurements that require high accuracy and real-time performance.
Measuring range: 5 mm, 12 mm, 30 mm
Maximum resolution: 0.1 µm, 0.5 μm
Accuracy: 1 µm p-p to 1.7 µm p-p (Depends on the model)
Maximum response speed: 80 m/min (resolution 0.1 µm), 250 m/min (resolution 0.5 µm)
Bearing structure: Improved sliding performance through the use of highly durable ball spline bearings
High durability: 320 million sliding cycles or more (under continuous evaluation as of January 2021)
Protection grade: IP67 (straight type / right angle type with air tube)
Built-in reference point
Output signal: A/B/reference point (Voltage-differential line driver output)
Flange type is also available for strong fixing.
*1 Values in parentheses show those of type B. *2 Excluding the interpolation box and connector *3 When Φ4 mm tube is used in the right angle type *4 Excluding interpolation box and connector *5 There are some differences in the shape and dimensions from the previous DK800 series models. Magnescale reserves the right to change product specifications without prior notice. *1 Excluding interpolation box and connector *2 When Φ4 mm tube is connected for right angle type *3 Excluding cable section and interpolation box Magnescale reserves the right to change product specifications without prior notice.Specifications
Specifications Model High resolution model General purpose resolution model DK805SAR, DK805SALR, DK805SAFR, DK805SAFLR, DK805SBR, DK805SBLR, DK805SBFR, DK805SBFLR DK805SAR5, DK805SALR5, DK805SAFR5, DK805SAFLR5, DK805SBR5, DK805SBLR5, DK805SBFR5, DK805SBFLR5 Measuring range 5 mm Maximum resolution 0.1 µm 0.5 µm Accuracy
(at 20 °C)1 µm p-p 1.5 µm p-p Measuring force
(at 20 °C)Upward: 0.35 ±0.25 N Horizontal: 0.40 ±0.25 N Downward: 0.45 ±0.25 N Operating temperature 0 to +50 °C (no condensation) Storage temperature -20 to +60 °C (90 %RH or less) Maximum response speed *1 80 m/min (42 m/min) 250 m/min (100 m/min) Spindle driving Spring push (All model)
Air drive by vacuum suction is possible (DK805S*LR*)Reference point response speed Same as maximum response speed noted above Reference point at 1 mm ±0.5 mm position of spindle movement Protection grade *2 Straight type: IP67 / Right angle type: IP64 (IP67*3 ) Vibration resistance 100 m/s2 (20 to 2,000 Hz) Impact resistance 1,000 m/s2 (11 ms) Power supply DC 5 V ±5 % Power consumption 1 W Output A/B/reference point, voltage-differential line driver output (conforming to EIA-422) Mass*4 Approx. 30 g Feeler Carbide ball tip, mounting screw M2.5 Steel ball tip, mounting screw M2.5 Output cable length 2.5 m Accessories Instruction manual, +P M4 x 5 screws (2 pc), tightening nut, clamp spanner, wave washer,
mounting pins 1 each (for DK8**S*F** only), hose elbow (for DK8**S*L** only),
spanner, supplementSpecifications Model High resolution models General purpose resolution models DK812SAR
DK812SALR
DK812SAFR
DK812SAFLR
DK812SAVRDK812SBR
DK812SBLR
DK812SBFR
DK812SBFLR
DK812SBVRDK812SAR5
DK812SALR5
DK812SAFR5
DK812SAFLR5
DK812SAVR5DK812SBR5
DK812SBLR5
DK812SBFR5
DK812SBFLR5
DK812SBVR5Measuring range 12 mm Maximum resolution 0.1 µm 0.5 µm Accuracy
(at 20 °C)1 µm p-p 1.5 µm p-p Measuring force
(at 20 °C)Upward: 0.4 ±0.3 N 0.6 ±0.5 N (Pneumatic push type)
Horizontal: 0.5 ±0.3 N 0.7 ±0.5 N (Pneumatic push type)
Downward: 0.6 ±0.3 N 0.8± 0.5 N (Pneumatic push type)
Pneumatic push: 0.055 MPaMaximum response speed 80 m/min 42 m/min 250 m/min 100 m/min Reference point at 1 mm ±0.5 mm position of spindle movement Reference point response speed Same as maximum response speed noted above Output A/B/reference point, voltage-differential line driver output
(conforming to EIA-422)Spindle driving Spring push（DK812SAR/SAFR/SBR/SBFR/SAR5/SAFR5/SBR5/SBFR5）
Pneumatic push (DK812SAVR/SBVR/SAVR5/SBVR5)
Spring push / Vacuum suction (DK812SALR/SAFLR/SBLR/SBFLR/SALR5/
SAFLR5/SBLR5/SBFLR5)Protection grade*1 Straight type: IP67, right angle type: IP64 (IP67*2) Vibration resistance 100 m/s2 (20 to 2,000 Hz) Impact resistance 1,000 m/s2 (11 ms) Operating temperature 0 to +50 °C (no condensation) Storage temperature −20 to +60 °C (90 %RH or less) Power supply 5 VDC ±5 % Power consumption 1 W Mass*3 Approx. 30 g Output cable length 2.5 m Feeler Carbide ball tip, Mounting screw M2.5 Steel ball tip, Mounting screw M2.5 Accessories Instruction manual, +P M4 × 5 screw (2 pc), tightening nut, clamp spanner, wave washer,
mounting pin 1 each (DK8**S*F** only), hose elbow (DK8**S*L** only), spanner
