日本Panasonic松下安全传感器NA2-N12-PN
发布时间:2024-10-15
日本Panasonic松下安全传感器NA2-N12-PN
日本Panasonic松下安全传感器NA2-N12-PN
Product Number | NA2-N12-PN |
---|---|
Part Number | NA2-N12-PN |

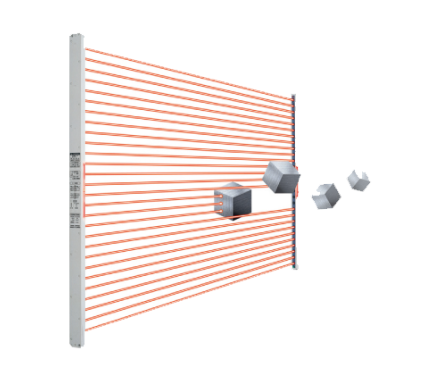

Product | General Purpose & Slim Body Area Sensor |
Details | PNP output |
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
Item | Specifications |
---|---|
Product Number | NA2-N12-PN |
Part Number | NA2-N12-PN |
Products Name | General Purpose & Slim Body Area Sensor |
Product details | PNP output |
The price of the product | Please contact our office |
Sensing height | 220 mm 8.661 in |
Sensing range | 5 m 16.404 ft |
Beam pitch | 20 mm 0.787 in |
Sensing object | dia. 30 mm dia. 1.181 in or more opaque object (completely beam interrupted objects) |
Supply voltage | 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
Power consumption:Emitter:Job indicator ON | 0.8 W or less |
Power consumption:Emitter:Job indicator OFF | 0.7 W or less |
Power consumption:Receiver:Job indicator ON | 0.8 W or less |
Power consumption:Receiver:Job indicator OFF | 0.7 W or less |
Output | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current) |
Output:Utilization category | DC-12 or DC-13 |
Output:Output operation | ON when all beam channels are received (OFF when one or more beam channels are interrupted) |
Output:Short-circuit protection | Incorporated |
Response time | 10 ms or less (12 ms or less when the interference prevention function is used) |
Indicators:Emitter | Emitting indicator: Green LED x 2 (light up during emission; one LED lights up for Frequency A setting, both LEDs light up for Frequency B setting) Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch) |
Indicators:Receiver | Operation indicator: Red LED (lights up when one or more beam channels are interrupted) Stable incident beam indicator: Green LED (lights up when all beam channels are stably received) Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch) * When an excess current flows through the output, the stable incident beam indicator and the operation indicator on the receiver blink simultaneously due to operation of the short-circuit protection circuit. |
Interference prevention function | Incorporated |
Test input (emission halt) function | Incorporated |
Pollution degree | 3 (Industrial environment) |
Protection | IP40(IEC) |
Ambient temperature | -10 to +55 degrees +14 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -10 to +60 degrees +14 to +140 degrees Fahrenheit |
Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
Insulation resistance | 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure |
Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each |
Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
Emitting element | Infrared LED (Peak emission wavelength: 870 nm 0.034 mil, modulated) (Note:Peak emission wavelength has been changed from production in March, 2017.) |
Material | Enclosure: Heat-resistant ABS Lens cover: Polyester Indicator cover: Acrylic |
Cable | 0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long |
Cable extension | Extension up to total 25 m 82.021 ft is possible for both emitter and receiver, with 0.2 mm2, or more, cable. |
Weight(Total weight of emitter and receiver) | Net weight: 400 g approx. Gross weight: 600 g approx. |
