日本HASEGAWA长谷川手表式报警器HXW-6/HXW-6W/HXW-6WL

日本HASEGAWA长谷川手表式报警器HXW-6/HXW-6W/HXW-6WL

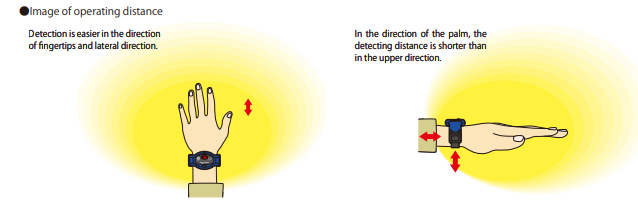

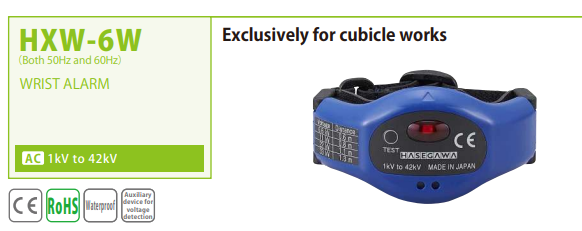

Detection is easier in the directionof fingertips and lateral direction.In the direction of the palm, thedetecting distance is shorter thanin the upper direction.Hot lineproximitydetector■What is a Hot line proximity detector?• It is a product that generates an alarm when it detects a voltage at a distance to prevent accident of electric shock. Unintended access due to human errors such as preconception or misconception can be prevented.• This product cannot be used as a voltage detector.■Precautions before purchasing the Hot line proximity detector• Please use proper model according to the applications, because detection sensitivity has been adjusted for cubicle works andoverhead line works respectively assuming the general site conditions.• The specification “○V‒○cm” of this product is a distance under the “standard condition” set in the factory. At actual sites, the operation distance may become shorter, depending on environment, wiring conditions, etc. (＊1) (＊1) e.g.: When a grounded structure exists nearby, etc.• The sensitivity of this product is directional. Sensitivity is reduced at the back of the product (in the case of HXW-6W, directionof the palm).●Image of operating distance
