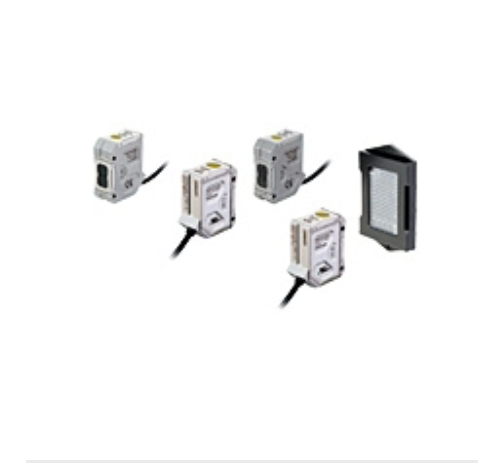

日本欧姆龙omron对射型光电传感器E3ZR-CT81D-M1TJ-0.3M
last update: February 20, 2017
Sensors
| Sensing method | Appearance | Connection method | Sensing distance | Ope- ration mode | Model | |
|---|---|---|---|---|---|---|
| NPN output | PNP output | |||||
| Through- beam (Emitter + Receiver) *1 |  | Pre-wired (2 m)*4 | [Red light] 30 m | Light ON | E3ZR-CT61L 2M Emitter E3ZR-CT61L-L 2M Receiver E3ZR-CT61L-D 2M | E3ZR-CT81L 2M Emitter E3ZR-CT81L-L 2M Receiver E3ZR-CT81L-D 2M |
| M12 Smartclick pre-wired connector (0.3 m) | E3ZR-CT61L-M1TJ 0.3M Emitter E3ZR-CT61L-L-M1TJ 0.3M Receiver E3ZR-CT61L-D-M1TJ 0.3M | E3ZR-CT81L-M1TJ 0.3M Emitter E3ZR-CT81L-L-M1TJ 0.3M Receiver E3ZR-CT81L-D-M1TJ 0.3M | ||||
| Pre-wired (2 m)*4 | Dark ON | E3ZR-CT61D 2M Emitter E3ZR-CT61D-L 2M Receiver E3ZR-CT61D-D 2M | E3ZR-CT81D 2M Emitter E3ZR-CT81D-L 2M Receiver E3ZR-CT81D-D 2M | |||
| M12 Smartclick pre-wired connector (0.3 m) | E3ZR-CT61D-M1TJ 0.3M Emitter E3ZR-CT61D-L-M1TJ 0.3M Receiver E3ZR-CT61D-D-M1TJ 0.3M | E3ZR-CT81D-M1TJ 0.3M Emitter E3ZR-CT81D-L-M1TJ 0.3M Receiver E3ZR-CT81D-D-M1TJ 0.3M | ||||
| Retro- reflective with MSR function |
| Pre-wired (2 m)*4 | [Red light] 2.5 m *3 (100 mm) (When using E39-R1R Oil-resistant Reflector) | Light ON | E3ZR-CR61L 2M | E3ZR-CR81L 2M |
| M12 Smartclick pre-wired connector (0.3 m) | E3ZR-CR61L-M1TJ 0.3M | E3ZR-CR81L-M1TJ 0.3M | ||||
| Pre-wired (2 m)*4 | Dark ON | E3ZR-CR61D 2M | E3ZR-CR81D 2M | |||
| M12 Smartclick pre-wired connector (0.3 m) | E3ZR-CR61D-M1TJ 0.3M | E3ZR-CR81D-M1TJ 0.3M | ||||
| Diffuse- reflective |  | Pre-wired (2 m)*4 | [Red light] 0.5 m | Light ON | E3ZR-CD61L 2M | E3ZR-CD81L 2M |
| M12 Smartclick pre-wired connector (0.3 m) | E3ZR-CD61L-M1TJ 0.3M | E3ZR-CD81L-M1TJ 0.3M | ||||
| Pre-wired (2 m)*4 | Dark ON | E3ZR-CD61D 2M | E3ZR-CD81D 2M | |||
| M12 Smartclick pre-wired connector (0.3 m) | E3ZR-CD61D-M1TJ 0.3M | E3ZR-CD81D-M1TJ 0.3M | ||||
*1. Through-beam Sensors are sold in sets that include both the Emitter and Receiver. An order for the Emitter or Receiver alone cannot be accepted.
*2. The Reflector is sold separately. Select the Reflector model most suited to the application.
*3. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*4. Models with 5-m cable length are also available with "5M" suffix. (Example: E3ZR-CT61L 5M)
Accessories (Sold Separately)
Sensor I/O Connectors (M12, Sockets on One Cable End)
(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
| Appearance | Cable diameter (mm) | Cable length | Sensor I/O Connector model number | Applicable Photoelectric Sensor model number |
|---|---|---|---|---|
| Straight, Smartclick Oil-resistant Connectors  | 4 dia. | 2 m | XS5FR-D423-D80-RB1 | E3ZR-C[][]1[]-M1TJ |
| 5 m | XS5FR-D423-G80-RB1 | |||
| 10 m | XS5FR-D423-J80-RB1 |
Note: Refer to the XS5[]R on catalog for connector details and for information on cables with connectors on both ends.
Slit (A Slit is not provided with Through-beam Sensors) Order a Slit separately if required.
| Slit width | Sensing distance (Reference value) | Model | Contents |
|---|---|---|---|
| E3ZR-CT[] | |||
| 1-mm dia. | 0.2 m | E39-S77A | One set (contains Slits for both the Emitter and Receiver) |
| 2-mm dia. | 0.8 m | E39-S77B |
