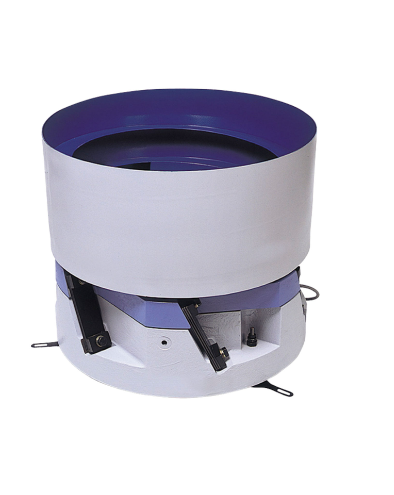

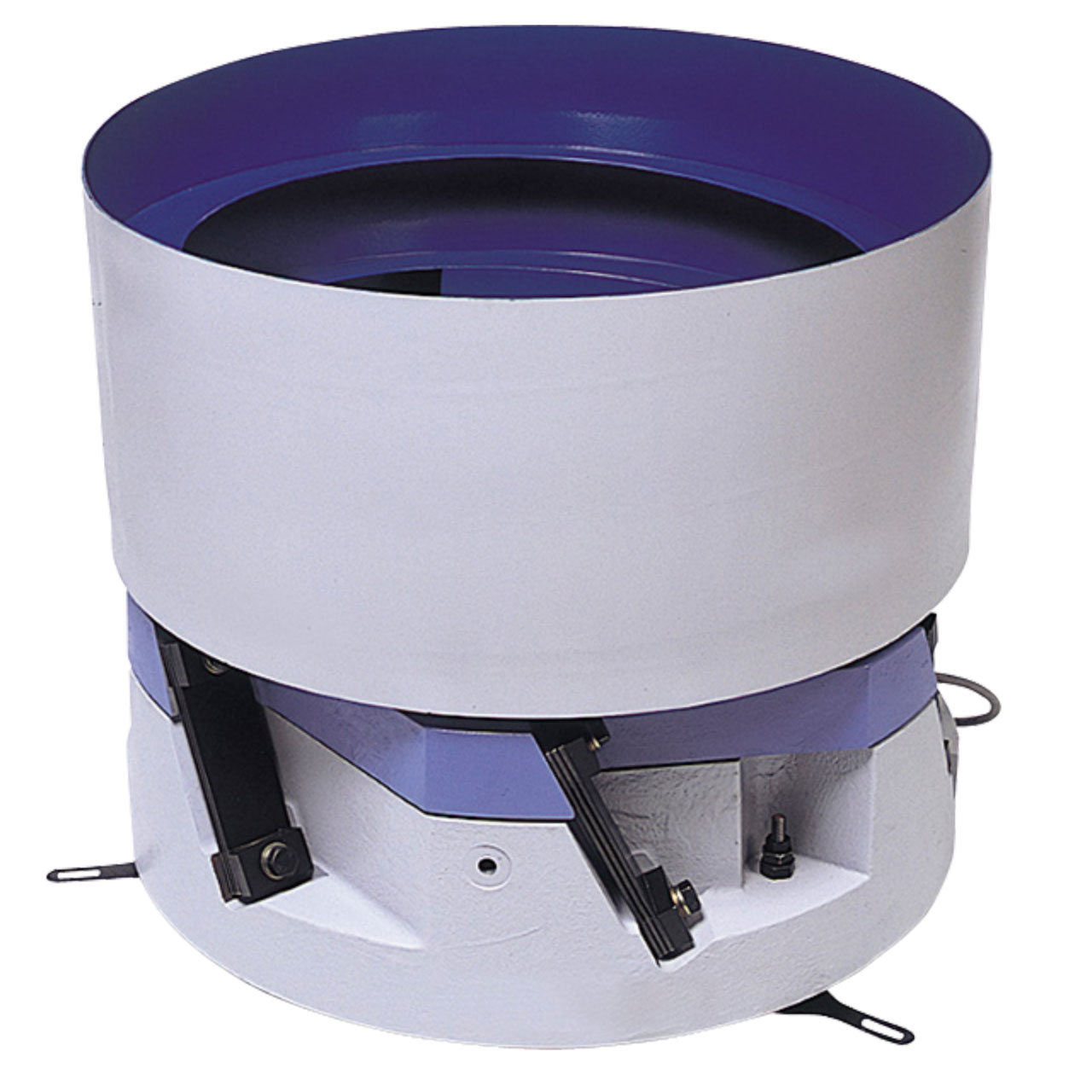

日本神钢Shinko振动盘ER-45B-R
ER Series
Steady delivery of workpieces of all sizes
With low vibration frequencies of 50 to 90Hz and a large amplitude of 1.2 mm, this series is suited to workpieces from 10 mm up in size.
Bowl diameters from 250 to 1100 mm can be accommodated, to give powerful feeder performance.
Specifications
| Model | ER-25B | ER-30B | ER-38B | ER-45B | ER-55B | ER-65B | ER-75B | |
|---|---|---|---|---|---|---|---|---|
| Drive unit outer diameter (mm) | φ260 | φ310 | φ390 | φ460 | φ560 | φ660 | φ760 | |
| Drive unit height (mm) | 198 | 225 | 265 | 285 | 325 | 325 | 325 | |
| Drive unit weight (kg) | 27 | 43 | 76 | 110 | 166 | 214 | 274 | |
| Leaf-spring attachment angle (degre) | 20 | |||||||
| Rated voltage (V) | 200 (*1) | |||||||
| Rated current (A) | 1.0 | 1.5 | 2.0 | 2.5 | 5.0 | 5.0 | 5.0 | |
| Vibration frequency (Hz) | 50~90 | |||||||
| Unprocessed bowl diameter (mm) (cylindrical) | 250 | 300 | 375 | 450 | 550 | 650 | 750 | |
| Max. bowl diameter (mm) (cylindrical) | 420 | 500 | 600 | 700 | 830 | 980 | 1130 | |
| Max. amplitude (mm) (periphery of standard cylindrical bowl) | 1.2 | 1.4 | ||||||
| Max. loaded weight (kg) (workpieces + bowl weight) | 8 | 12.5 | 17 | 26 | 70 | 85 | 125 | |
| Cross section area of power cable (mm2) | 0.75×3cores | 1.25×3cores | 2.0×3cores | |||||
| Compatible controllers (*2) | AC 200V | C10-1VF/1VFEF | C10-3VF/3VFEF | C10-5VF/5VFEF | ||||
| AC 100V | *2 | C10-3VF/3VFEF+C10-TR | - | |||||
*1 With an AC100V power source, use C10-TR transformer (sold separately).
*2 C10-1VF/1VFEF+C10-TR

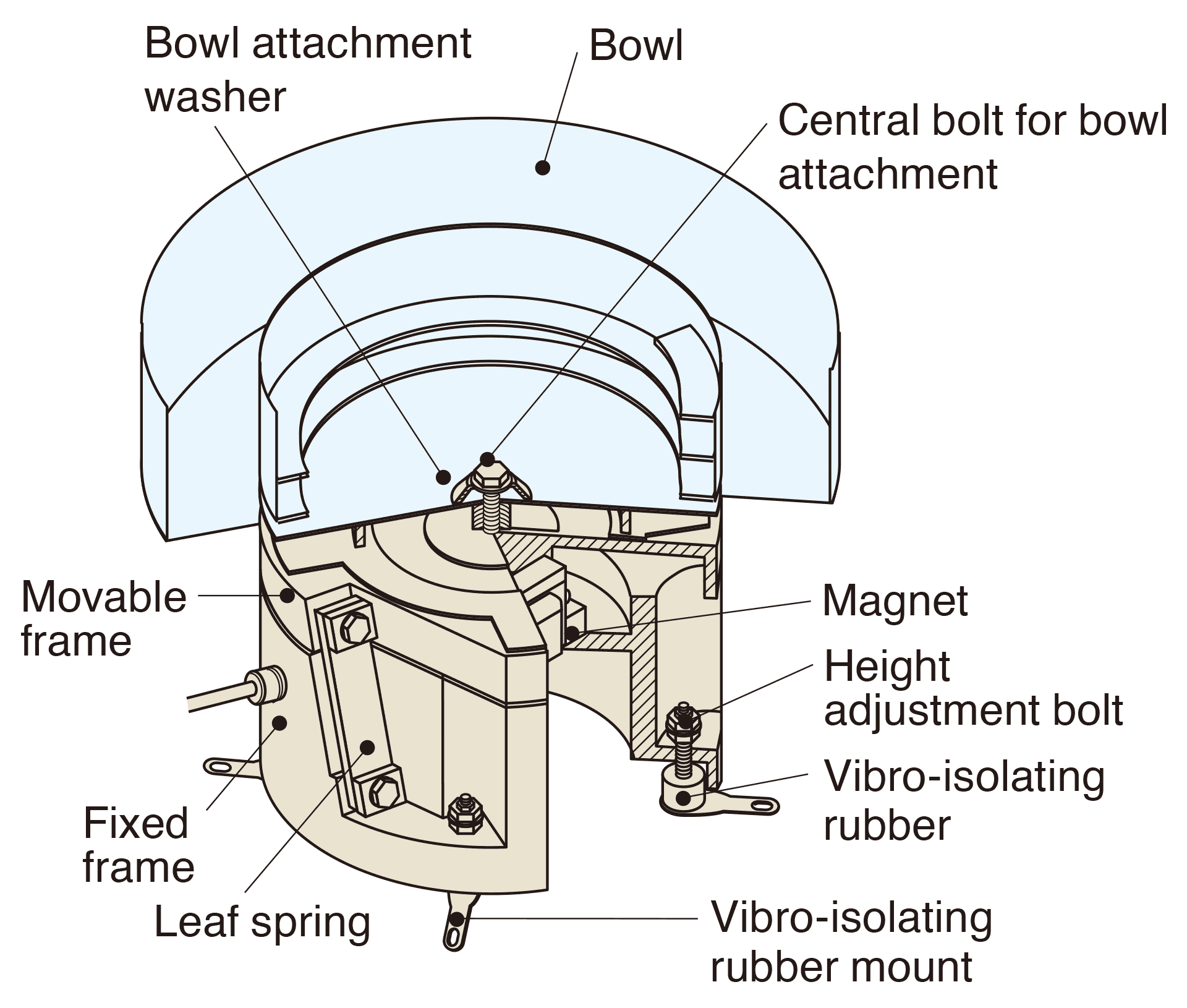

Structural Diagram

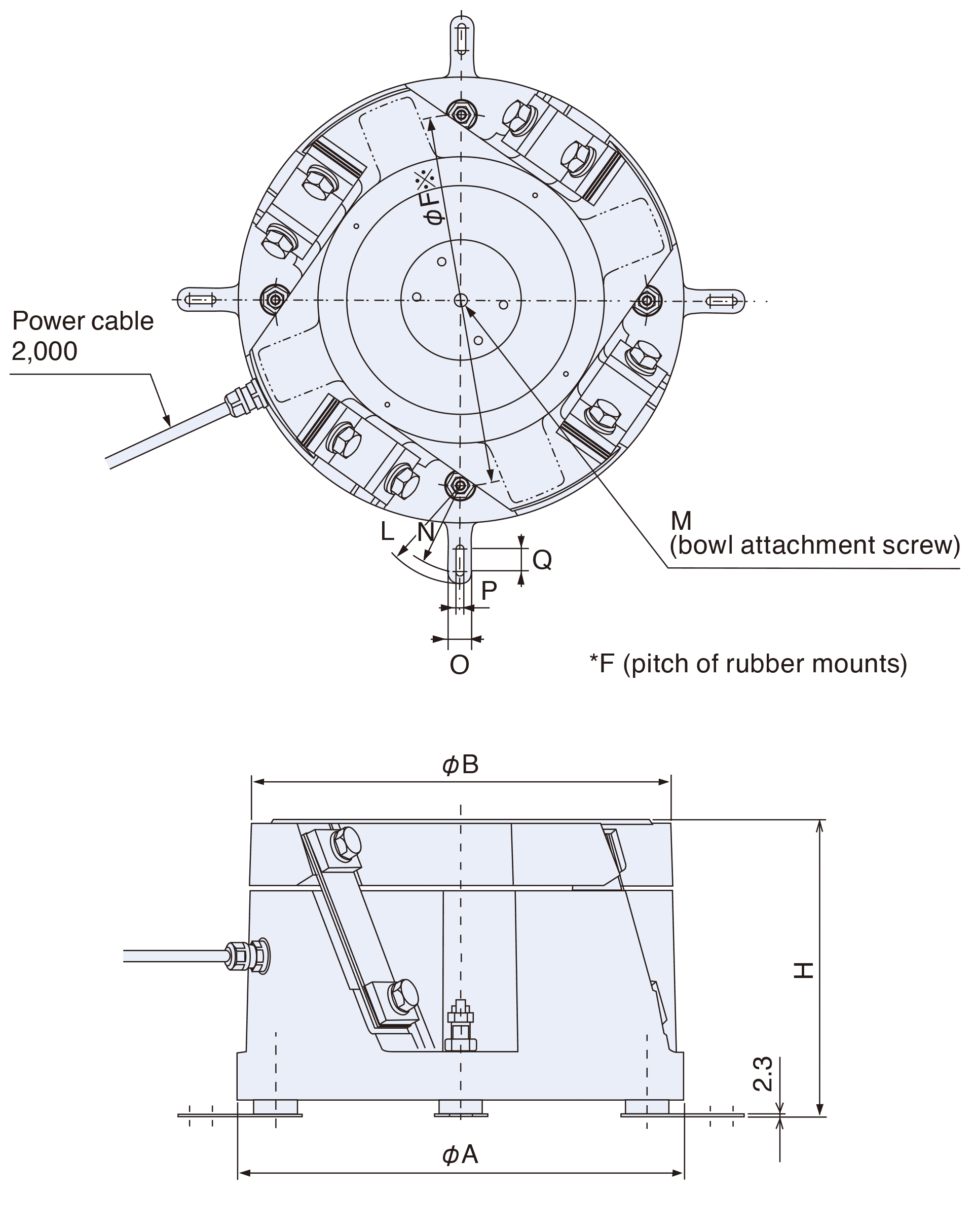

ER-25B/30B/38B/45B
Dimensions
Unit: mm
Dimensions Chart
| Model | H | φA | φB | M | φF | L | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|
| ER-25B | 195~198~201 | 260 | 250 | M12 | 216 | 58 | 50 | 16 | 7 | 10 |
| ER-30B | 220~225~230 | 310 | 300 | M12 | 252 | 85 | 75 | 20 | 7 | 20 |
| ER-38B | 260~265~270 | 390 | 375 | M16 | 324 | 85 | 75 | 20 | 7 | 20 |
| ER-45B | 280~285~290 | 460 | 450 | M16 | 390 | 85 | 75 | 20 | 7 | 20 |
Unit: mm

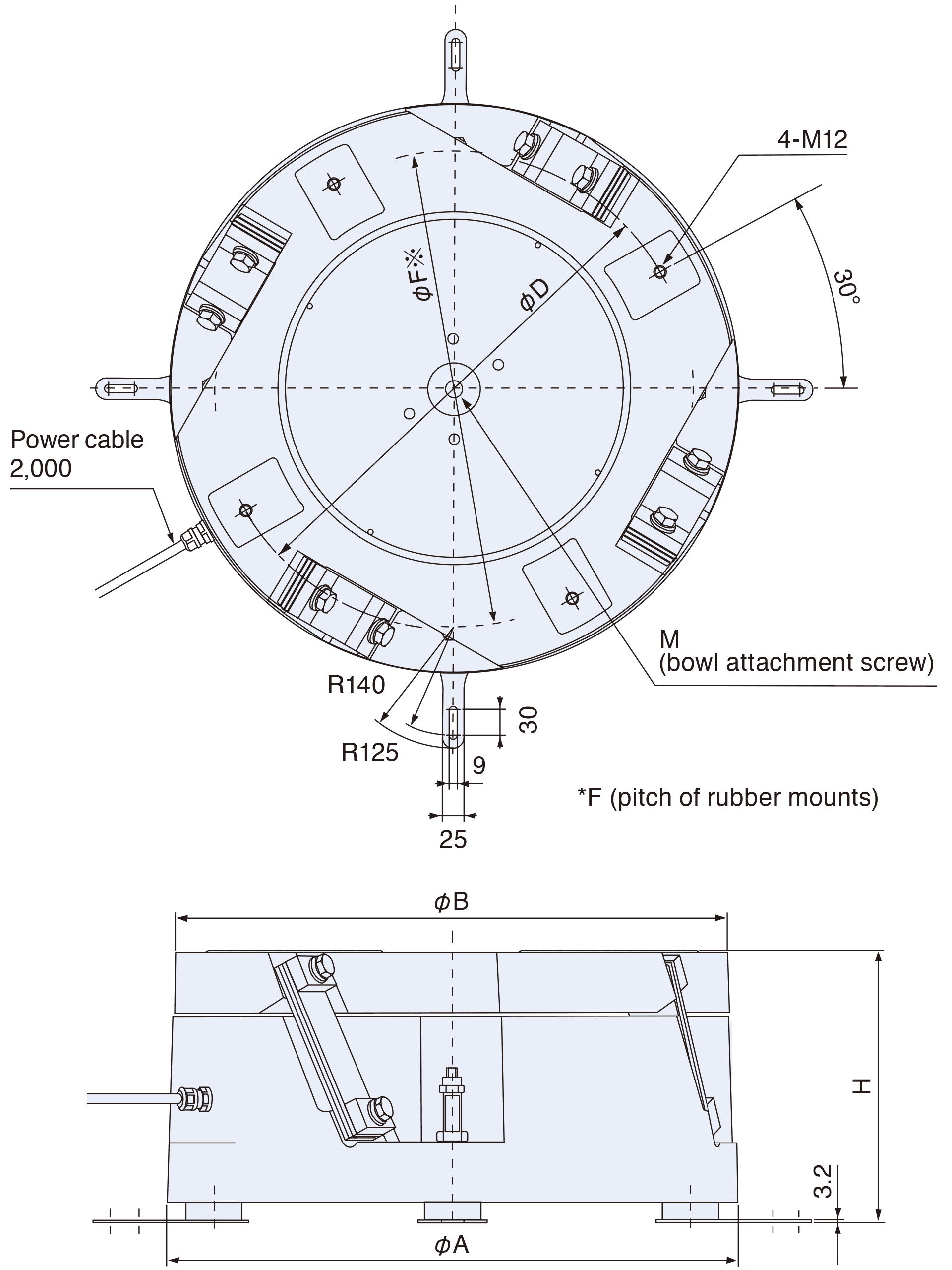

ER-55B/65B
Dimensions
Unit: mm
Dimensions Chart
| Model | H | φA | φB | φD | M | φF |
|---|---|---|---|---|---|---|
| ER-55B | 316~325~334 | 560 | 550 | 460 | M20 | 450 |
| ER-65B | 316~325~334 | 660 | 650 | 580 | M20 | 550 |
Unit: mm

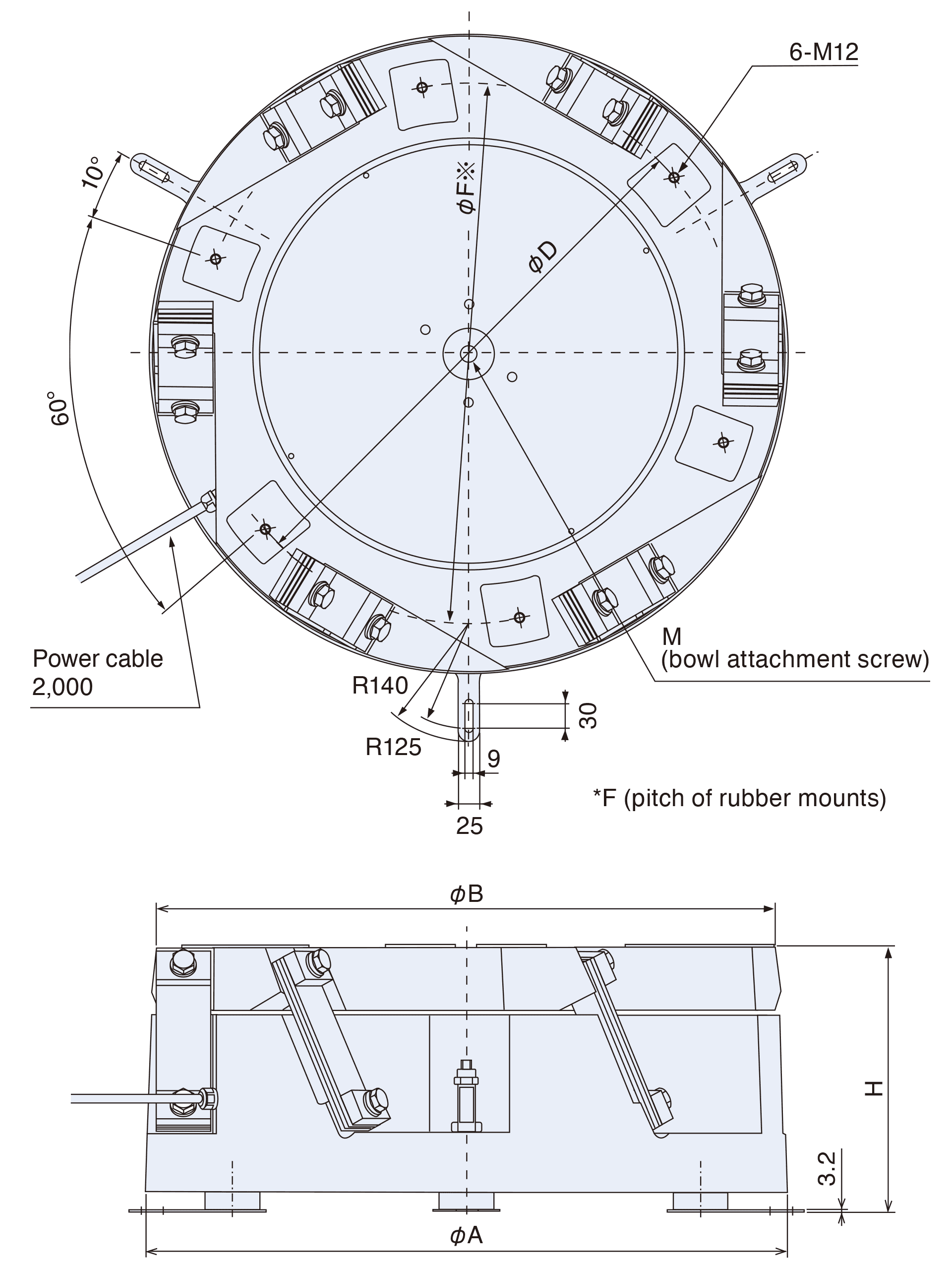

ER-75B
Dimensions
Unit: mm
Dimensions Chart
Model | H | φA | φB | φD | M | φF |
|---|---|---|---|---|---|---|
| ER-75B | 316~325~334 | 760 | 750 | 640 | M20 | 640 |
Unit:mm
