日本Panasonic松下电抗器DV0PM20047/DV0P228
发布时间：2024-11-11
日本Panasonic松下电抗器DV0PM20047/DV0P228
日本Panasonic松下电抗器DV0PM20047/DV0P228
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | DV0P227 |
| [Remarks] | When using a reactor, be sure to install one reactor to one servo driver. |
| Specification | 4.02 mH |
| Applicable Family / Series | AC Servo Motors MINAS A6 Series MINAS A5 Series MINAS E Series MINAS A4 Series MINAS AIII Series MINAS S Series MINAS A Series Brushless Motors MINAS-BL GU/GV/KV Series |
scroll
Wireing
Specifications and design of the products are subject to change without notice for the product improvement.

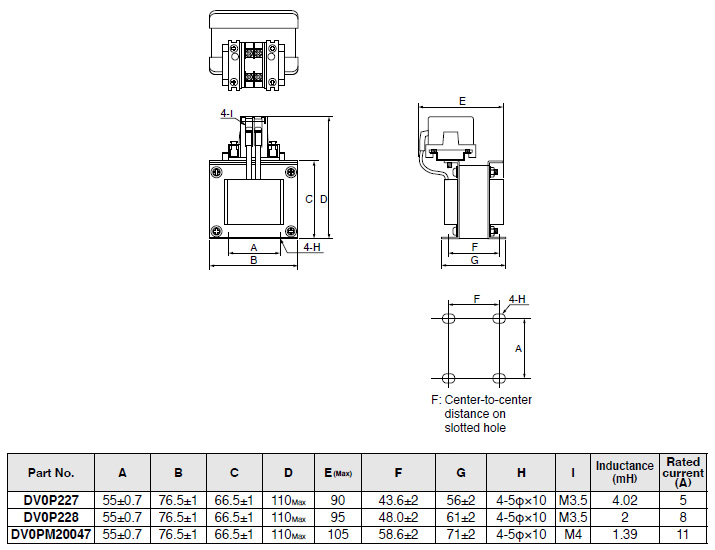

Dimensions
Specifications and design of the products are subject to change without notice for the product improvement.
[Unit: mm]
