日本YOKOGANA横河电导率转换器FLEXA21D-P-D-AB-P1-NN-A-N-LA-N-NN

• Part Number: FLXA21-D-P-D-AB-P1-NN-A-N-LA-N-NN/UM/SCT Model and Suffix Codes

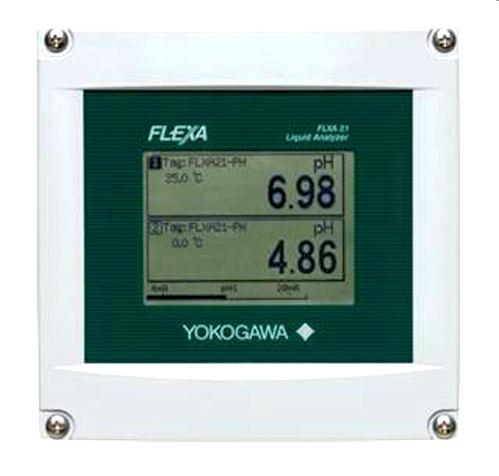

• Model: FLXA21 - 2-Wire Analyzer

• Power Supply: -D - Always -D

• Housing: -P - Plastic

• Display: -D - Anti-glare LCD

• Type: -AB

• 1st Input: -P1 - pH/ORP (Note 1)

• 2nd Input (Note 2): -NN - Without input

• Output: -A - 4-20 mA + HART

• -N: Always N

• Language Set (Note 3): -LA - English and 11 languages

• Country: -N - Global except Japan

• -NN: Always -NN

• Option - Mounting Hardware: /UM - Universal mounting kit (Note 4)

• Option - Tag Plate: /SCT - STainless steel tag plate

• Note:

• This input is to be come from an analog pH/ORP sensor.

• When a 2nd input is selected, only the same kind of the 1st input is available.

• For example, when a 1st input is -P1, the 2nd input must be the same -P1.

• The combination of ISC and ISC is not available. And, the combination of SENCOM sensor and SENCOM sensor is not available, either. These languages are message languages on the analyzers display. One analyzer has English and 11 languages. All languages are as follows; English, Chinese, Czech, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian and Spanish. When an analyzer is used in Japan, it must meet the Japanese Measurement Law. Only SI units must be used on the analyzer and its documents in Japan.

• Shipping Weight: 9 Kg
