日本中西NAKANISHI主轴NR-3060S
发布时间：2024-11-14

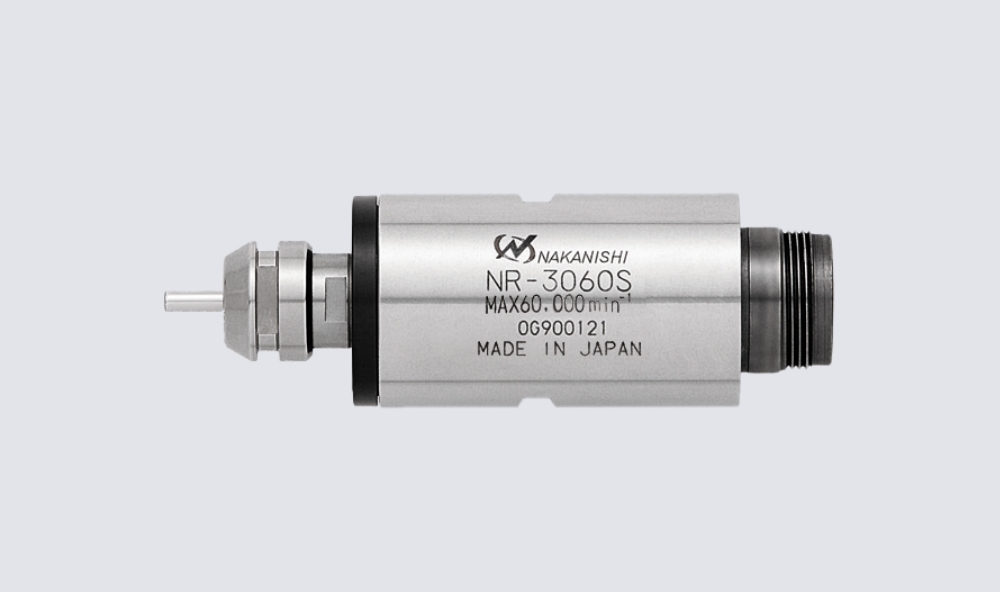

日本中西NAKANISHI主轴NR-3060S
NR-3060SShort spindle
(Max. 60,000 min⁻¹)
Code Number7859
Type
Spindle
Outer Diameter
φ30 mm
Max. rpm
60,000 min-1
Speed
19,000 min-1
(Using AM-3020r)Spindle accuracy
Within 1 μm
Collet
CHK Group
(ø0.5–ø6.35 mm)Weight
260 g
Standard accessories
Collet nut (K-265)
Wrench (12×14): 2 pcs.・(22×27): 1 pc.Options
Collet (CHK Group): ø0.5–ø6.35 mm
*Collet is sold separately.
Metal Saw Arbor (KCH-03): ød (I.D.) × under ø30 mm (O.D.)
Grindstone Arbor (AGM-03): Grindstone I.D. ø5.0 mm
Grindstone Flange (EGF-19): applicable grindstone I.D. ø19.05 × O.D. ø40 × 7 mm
