日本CCS希希爱视点光源专用电源PJ-1505-2CA
发布时间：2024-11-28
日本CCS希希爱视点光源专用电源PJ-1505-2CA
日本CCS希希爱视点光源专用电源PJ-1505-2CA

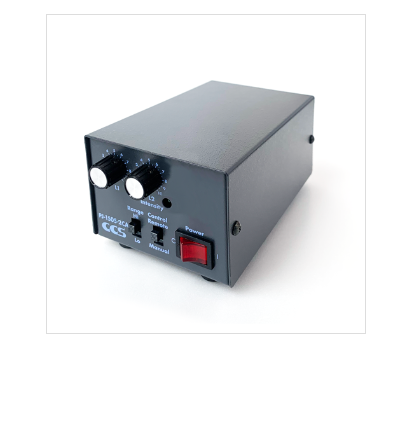

PJ-1505-2CA
This 2-channel Analog Control Unit can be used for up to two HLV-series Spot Lights.
It operates with 100 to 240 VAC input. It measures 86 x 132 x 62 mm (width x depth x height).
Product Details
| Dimensions | W 86 mm x D 132 mm x H 62 mm |
|---|---|
| Applicable Light Unit (output ratings) | HLV Series |
| Number of channels | 2 channels |
| Lighting method | Continuous lighting |
| Drive method | Constant-current system |
| Intensity control method | Variable-current control |
| Input voltage | 100 to 240 VAC (rated), 85 to 264 VAC (range) |
| Power consumption | 27 VA typ. |
| Output voltage | 5.5 VDC (max. rating) |
| Intensity control | Manual: Intensity control on front of unit External: Analog input voltage of 0 to 5 V (5.25 V max.) |
| Over current protection | Operates at 105% (min.) of the rating current of the Spot Light and turns the output OFF. |
| Output connector | SMP-03V-BC [1: Sense/2: Output(+)/3: Output(-)] x 2 |
| External control connector | 15-pin D-sub plug with M2.6 mm screws |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 640 g max. |
| Material | Steel plate t1.0 |
| Accessories | AC cord with ground wire (2 m), Instruction Guide |
