MOXA摩莎光电转换器SFP-1GLXLC-T
发布时间：2024-12-20
日本MOXA摩莎光电转换器SFP-1GLXLC-T
日本MOXA摩莎光电转换器SFP-1GLXLC-T

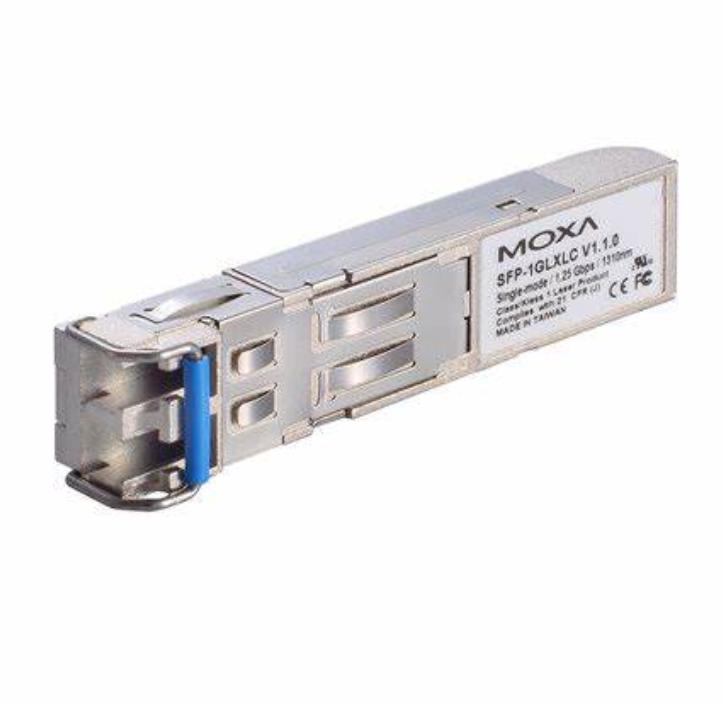

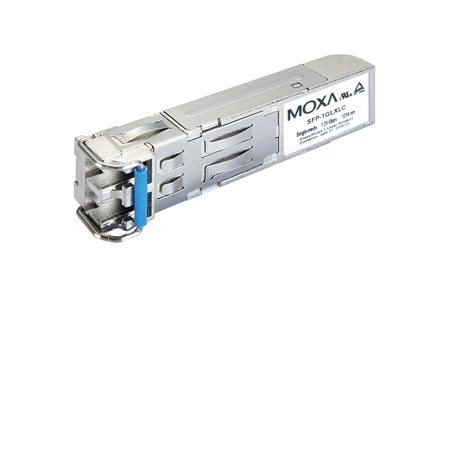

SFP-1GLXLC-T
SFP-1G 系列
SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, -40 to 85°C operating temperature
Ethernet Interface
Ports
1
Connectors
Duplex LC connector
Simplex LC connector (WDM-type only)Optical Fiber
Optical Fiber
Optical Fiber
Optical Fiber
Optical Fiber
Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
Power Parameters
Power Consumption
Max. 1 W
Environmental Limits
Operating Temperature
-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
CE, FCC, TÜV (EN 60825), UL 60950-1
Maritime
DNV-GL
