日本PISCO手动阀门HV4-4-LR/HV6-6-2
发布时间：2024-12-20
日本PISCO手动阀门HV4-4-LR/HV6-6-2
日本PISCO手动阀门HV4-4-LR/HV6-6-2

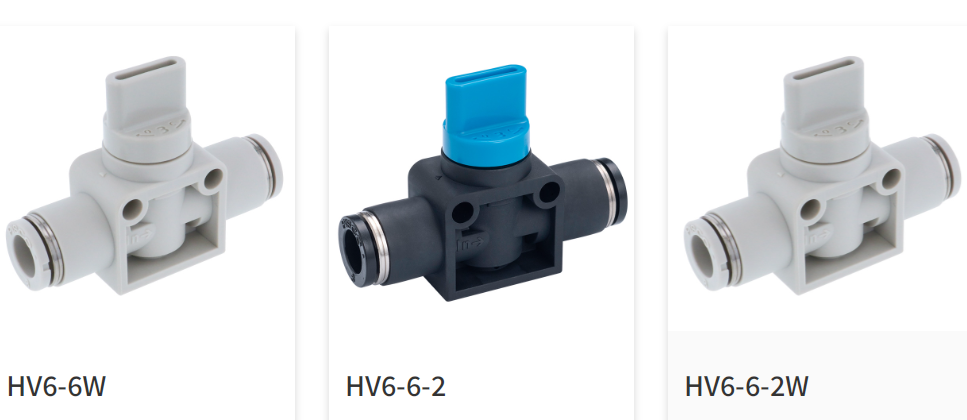

日本PISCO手动阀门HV6-6-LR/HV6-6W
日本PISCO手动阀门HV8-8-LR/HV6-6-2W
Valve
HV6-6
RoHS2 Compliant
Hand Valve turns on and off air pressure to pneumatic devices.
Three-directional control valve, which discharges the residual pressure, and two-directional control valve is available.
Model type
Union Straight
Weight
23.0g
Shipping unit
1pc.
Resin
Metal
Seal rubber
Port sizeOutline Dimensional DrawingSpecificationsNumber of portConstructionAdvantagesDetailed Safety InstructionsFrequently Asked Questions (FAQ)Products with Different OptionsProducts with Different SizesOption itemsRelated Products
Port size
Tube dia.1
| φ6mm |
|---|
Tube dia. 2
| φ6mm |
|---|

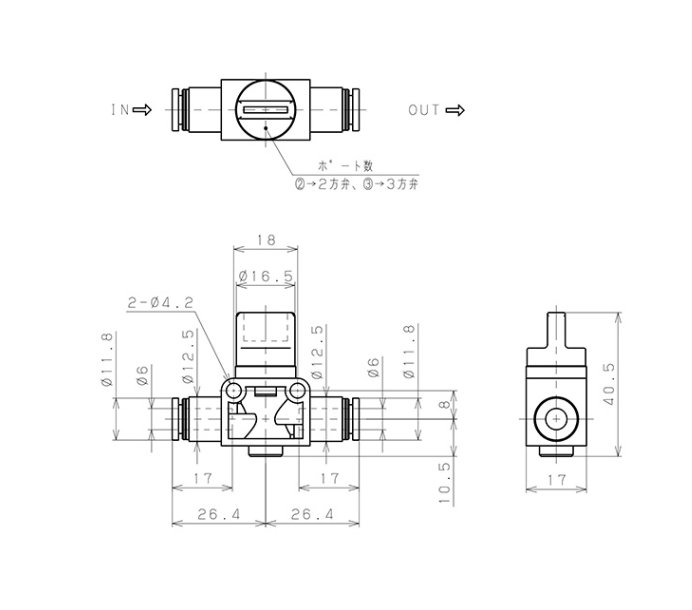

Outline Dimensional Drawing
Specifications
| Fluid medium | Air |
|---|---|
| Max. operating pressure | 0.9MPa |
| Max. vacuum | -100kPa |
| Operating temp. range | 0～60℃ (No freezing) |
