日本Leimac电源IDCA-1000M8-TP
发布时间:2024-12-21

 日本Leimac电源IDCA-1000M8-TP


 日本Leimac电源IDCA-1000M8-TP

IDCA-1000M8-TPMultiu-Channel Constant-Current Controller – IDCA series

IDCA-1000M8-TP



ModelIDCA-1000M8-TP
Item Number455-350
Channel numbers8ch
Input VoltageAC100~240V
Operating Frequency50/60Hz
Rated Output VoltageMAX DC12V
Rated Output Current100〜1000mA(each channel can be changed in 10mA increments)
Light Control SystemVariable Output Current System
External ControlExternal On/Off Control
Internal Light Control Method8-bit digital(256 levels)
External Light Control MethodTCP/IP
Output ConnectorSM connector(SMP-03V-BC、SMP-02V-BC)
Ambient Temperature0~+40℃
Ambient Humidity20~70% (non condensing)
Weight1300g

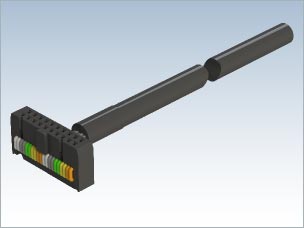

Cables

Product Data Download

CatalogDownload

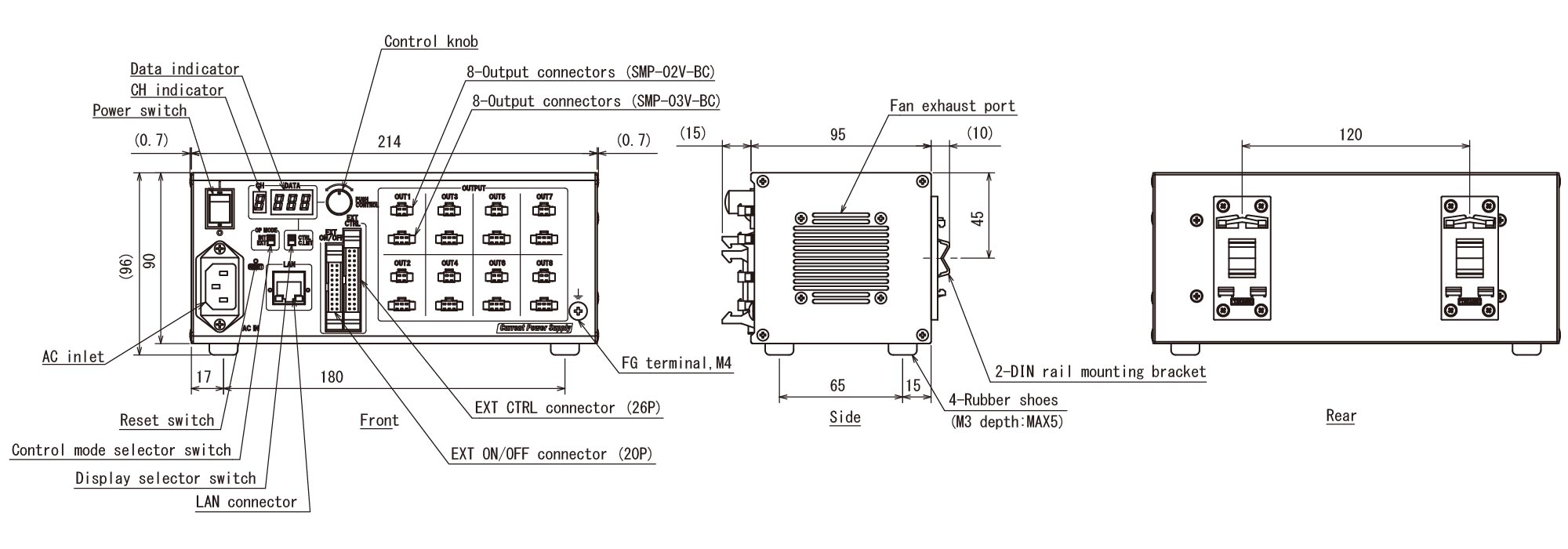

Drawing PDFMembers-Only
Drawing DXFMembers-Only

*Please login from the member registration / login page for requesting a product trial or downloading members-only data.

Software License Agreement

Our company licenses the software and all data, hereinafter referred to as "software," which can be downloaded by agreeing to the terms of this license agreement free of charge.
This license agreement applies to our software and any copies made under this license agreement.

  1. Our company owns the copyright of the software, the materials related to it provided on this website, and any copies made under this license agreement.

  2. The unauthorized reproduction for the purpose of selling, transferring, or lending the software provided on this website to a third party is strictly prohibited except for internal use.

  3. The values obtained from the drawing elements of the downloaded data are not guaranteed to match the actual product.
    In addition, the contents and specifications of the software and registered products are subject to change without prior notice.Furthermore, we will not be held liable for any direct, indirect, or repercussive damages to the customer as a result of operating this software.

  4. This agreement comes into effect once a customer downloads the software.
    We retain the right to terminate this contract immediately in the event of the customer breaching this contract.>/br>Upon termination of this contract, the customer shall lose the right of use granted by us under this contract and return or erase the software and all copies thereof.
