Miniature Pressure Transmitter for Flush type / Middle High Pressure
VESIM□□A series1MPa–50MPa
Suitable for measurement of viscous media since the flush type (no feed port) wetted part is hardly clogged up.
High environmental resistance
[Wide temperature compensation range / IPx7 rating / Vibration resistance: 196 m/s² (50 to 1000 Hz)]Compact and low price. (Some models are made-to-order.)
| Measured medium | Water, oil, gases or other media that will not corrode SUS304. |
|---|---|
| Pressure Type | Positive pressure can be measured. |
| Measured Range | Rated capacity: 1 to 50MPa |
| Output type | 4 to 20mA(2 wire system) |
Specifications
| Non Linearity | ±0.5%R.C. or less |
|---|---|
| Hysteresis | ±0.5%R.C. or less |
| Total Accuracy | ±3.0%R.C. or less (−20–100°C) |
| Compensated Temperature Range (Temperature of medium to be measured) | −20–100°C (No condensation or freezing) |
| Safe Temperature Range (Temperature of medium to be measured) | −40–100°C (No condensation or freezing) |
| Response | 5msec. or less |
| Safe Load Resistance | 11.5V: 150Ω MAX./24V: 500Ω MAX |
| Safe Overload Rating | 150%R.C. |
| Insulation Resistance | 10MΩ or more (DC50V) |
| Wetted Part Material | 1–5MPa: SUS304+Zirconia+SUS316L 10–50MPa: SUS304+Zirconia |
| Connection Screw | G3/8 |
| Fastening Torque | 68.6N·m or less |
| Vibration-proof | 196m/s² (50–1000Hz) |
| Protection | Equivalent to IP×7 |
| Power [Consumption current] | DC12V，DC24V (10–26.5V) |
| Cable | φ6mm 2-core shielded (oilproof) cable: 2m |
| Weight | Approx. 150g (Cable not included) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy P-14 1A(×1) |
* Overall accuracy: Non Linearity + Hysteresis + Temperature characteristics
Model Selection
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VES | Miniature Pressure Transmitter for Flush type/Middle High Pressure *Connection screw: G3/8 | |||
| 2.Analog output | - | - | Output type | Response frequency | Safe load resistance | Consumption current |
| ○ | I | 4–20mA (2-wire) | 200kHz | DC24V:500Ω or less /DC11.5V:150Ω or less | - | |
| 3.Calibration | - | - | Rated capacity | Example of calibration range | ||
| M01A | 1MPa | (0–1) MPa | ||||
| M03A | 3MPa | (0–3) MPa | ||||
| M05A | 5MPa | (0–5) MPa | ||||
| M10A | 10MPa | (0–10) MPa | ||||
| M20A | 20MPa | (0–20) MPa | ||||
| M35A | 35MPa | (0–35)MPa | ||||
| M50A | 50MPa | (0–50) MPa | ||||
| 4.Length (Cable) | 2m | 2m Standard | ||||
| 5m | 5m Option | |||||
| □□m | Other length *Contact our sales office for other cable lengths. | |||||

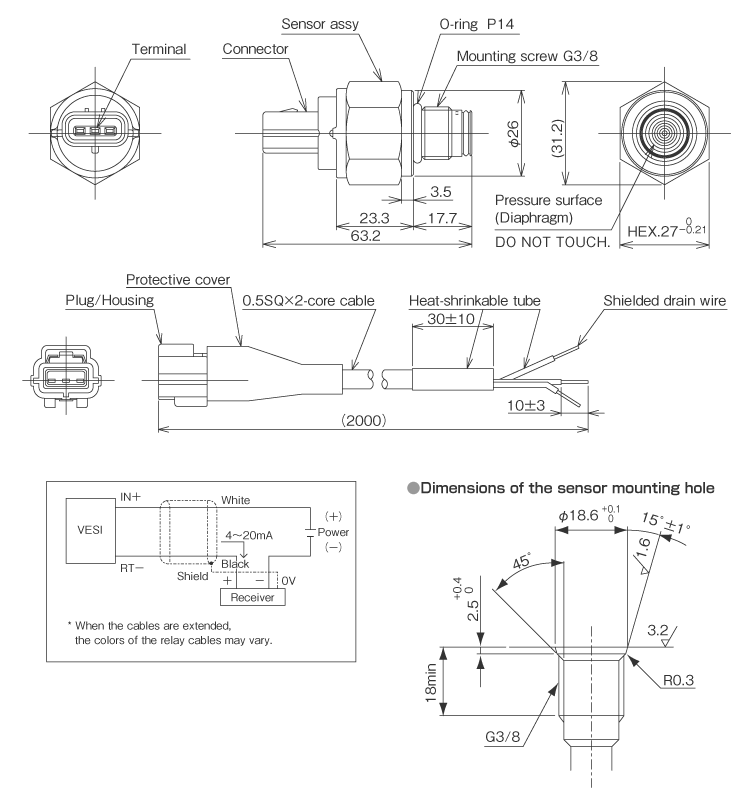

External dimensions (Unit: mm)
*Refer to line connection here
