日本松下Panasonic位控模块AFP7PP02T
发布时间：2024-12-26

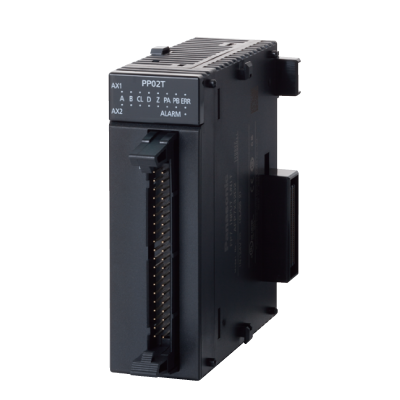

日本松下Panasonic位控模块AFP7PP02T
日本松下Panasonic位控模块AFP7PP02T
AFP7PP02T｜FP7 Positioning units
Product Number | AFP7PP02T |
|---|---|
Part Number | AFP7PP02T |
Product | FP7 Positioning units |
Product Name | FP7 Positioning units |
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Product Number | AFP7PP02T |
| Part Number | AFP7PP02T |
| Products Name | FP7 Positioning units |
| The price of the product | Please contact our office |
scroll
scroll
scroll
PERFORMANCE SPECIFICATIONS
| Item | Specifications |
|---|---|
| Output type | Transistor |
| Max. operation speed | 500 kpps |
| Number of axes controlled | 2 axes |
| Interpolation control | 2 axes linear interpolation, 2 axes circular interpolation |
| Position command units | pulse, micro m (The minimum command unit can be selected from 0.1 micro m or 1 micro m.), inch (The minimum command unit can be selected from 0.00001 inch or 0.0001 inch.), degree (The minimum command unit can be selected from 0.1 degree or 1 degree.) |
| Position command range | pulse: -1,073,741,823 to +1,073,741,823 pulse micro m (0.1 micro m): -107,374,182.3 to +107,374,182.3 micro m micro m (1 micro m): -1,073,741,823 to +1,073,741,823 micro m inch (0.00001 inch): -10,737.41823 to +10,737.41823 inch inch (0.0001 inch): -107,374.1823 to +107,374.1823 inch degree (0.1 degree): -107,374,182.3 to +107,374,182.3 degree degree (1 degree): -1,073,741,823 to +1,073,741,823 degree |
| Speed command range | pulse: 1 to 32,767,000 pps micro m: 1 to 32,767,000 micro m/sec. inch: 0.001 to 32,767.000 inch/sec. degree: 0.001 to 32,767.000 rev/sec. *Specify an output speed that is below the maximum operating speed. |
| Automatic operation:Position control:Position command method | Absolute (Absolute position designation), Increment (Relative position designation) |
| Automatic operation:Position control:Acceleration / deceleration method | Linear acceleration / deceleration, S-curve acceleration / deceleration |
| Automatic operation:Position control:Acceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Automatic operation:Position control:Deceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Automatic operation:Position control:Number of positioning tables | For each axis; Standard area: 600 points, Expansion area: 25 points |
| Automatic operation:Position control:Control method:Independent | PTP control (E point control, C point control), CP control (P point control), Speed control (J point control) |
| Automatic operation:Position control:Control method:2-axis interpolation:Linear interpolation | E point, P point and C point controls: Specify synthesis speed or major axis speed |
| Automatic operation:Position control:Control method:2-axis interpolation:Circular interpolation | E point, P point and C point controls: Specify center point or passing point |
| Automatic operation:Position control:Control method:3-axis interpolation:Linear interpolation | E point, P point and C point controls: Specify synthesis speed or major axis speed |
| Automatic operation:Position control:Control method:Spiral interpolation | E point, P point and C point controls: Specify center point or passing point |
| Automatic operation:Position control:Startup time | Standard area: 3 ms or less, Expansion area: 5 ms or less |
| Automatic operation:Position control:Other function:Dwell time | 0 to 32,767 ms (in increments of 1 ms) |
| Manual operation:JOG operation:Acceleration / deceleration method | Linear acceleration / deceleration, S-curve acceleration / deceleration |
| Manual operation:JOG operation:Acceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Manual operation:JOG operation:Deceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Manual operation:Home return:Acceleration / deceleration method | Linear acceleration / deceleration |
| Manual operation:Home return:Acceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Manual operation:Home return:Deceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Manual operation:Home return:Return method | DOG method (3 types), Limit method (2 types), Data set method, Z-phase method |
| Manual operation:Pulser operation:Speed command range | Operates in synchronization with pulser input. |
| Stop function:Deceleration stop:Deceleration time | Deceleration time of running operation |
| Stop function:Emergency stop:Deceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Stop function:Limit stop:Deceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Stop function:Error stop:Deceleration time | 0 to 10,000 ms (in increments of 1 ms) |
| Stop function:System stop:Deceleration time | Immediate stop (0 ms), all axes stop |
| Synchronous operation function:Synchronous basic setting:Master axis | Selectable from existence axes, virtual axes or pulse input (1 to 4). |
| Synchronous operation function:Synchronous basic setting:Slave axis | Max. 2 axes |
| Synchronous operation function:Electronic gear function:Operation setting | Gear ratio setting |
| Synchronous operation function:Electronic gear function:Operation method | Direct method, Acceleration / deceleration method |
| Synchronous operation function:Electronic clutch function:Clutch ON trigger | Contact input |
| Synchronous operation function:Electronic clutch function:Clutch method | Direct method, Linear slip method |
| Synchronous operation function:Electronic cam function:Cam curve | Select from 20 types, Multiple curves can be specified within a phase (0 to 100%). |
| Synchronous operation function:Electronic cam function:Resolution | 1024, 2048, 4096, 8192, 16384, 32768 |
| Synchronous operation function:Electronic cam function:Number of cam patterns | 4 to 16 (Depends on resolution) |
| Other specifications:Output mode | 1 pulse output (pulse + sign), 2-pulse output (cw/ccw) |
| Other specifications:High-speed counter function:Countable range | -1,073,741,823 to +1,073,741,823 pulse |
| Other specifications:High-speed counter function:Input mode | Phase difference input, Direction distinction input, Individual input (transfer multiple available for each) |
| Other specifications | Built-in servo ON output |
scroll
scroll
scroll
COMMON GENERAL SPECIFICATIONS
| Item | Specifications |
|---|---|
| Ambient temperature | 0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉ |
| Ambient humidity | 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation) |
| Vibration resistance | 5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions |
| Shock resistance | 147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2) |
| Noise immunity | 1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator) |
| Operating condition | Free from corrosive gasses and excessive dust |
