日本SMC电磁阀VQD1251W-5M-M5
发布时间：2024-12-27
日本SMC电磁阀VQD1251W-5M-M5
日本SMC电磁阀VQD1251W-5M-M5

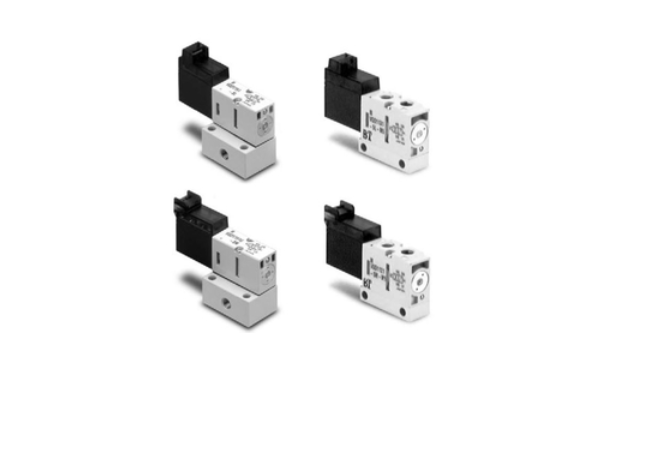

Solenoid Valve (VQD1251W-5M-M5)
4-Port, Direct Acting, Poppet Type, VQD1000 Series
Part Number: VQD1251W-5M-M5
SMC Solenoid Valve.
[Features]
· Extraordinarily stable responsiveness at high speed
· Compact and lightweight (34 g) yet with a large flow capacity
· Can also be used for vacuum applications (-101.2 kPa)
· Compatible with clean environments
· Copper-free specifications
Configured Specifications
| Type | Solenoid Valves | Application | Single Unit |
|---|---|---|---|
| Mounting Orientation | Direct | Voltage | DC24V |
| Specification | Standard | Valve Type | 4-Port Valve |
| Actuation | [Single] Latching | Status at Power Off | Self-Recovery (Spring Return) |
| Valve Positions | 2-Position Normally Open | Pipe Port Type | M |
| Port Size | M5 | Pressure Rating(MPa) | 0~0.7 |
| Driving Type | Linear Motion Poppet | Pilot Air Supply | Internal |
| Seal Type | Soft Seal | Manual Switch | Not Provided |
| Plumbing | Sub-Base Plumbing | Flow Coefficient (Cv) | 0.07 |
| Lead Wire Electrical Entry | Plug lead type: M plug connector, with indicator light / surge voltage suppressor with lead wire | CE Compliant | None |
| Valve Options | For large flow capacity / For vacuums |
