日本Mitsuboshi三菱同步带轮P14S3M0100CAL-HA-P-8
发布时间：2024-12-27
日本Mitsuboshi三菱同步带轮P14S3M0100CAL-HA-P-8
日本Mitsuboshi三菱同步带轮P14S3M0100CAL-HA-P-8

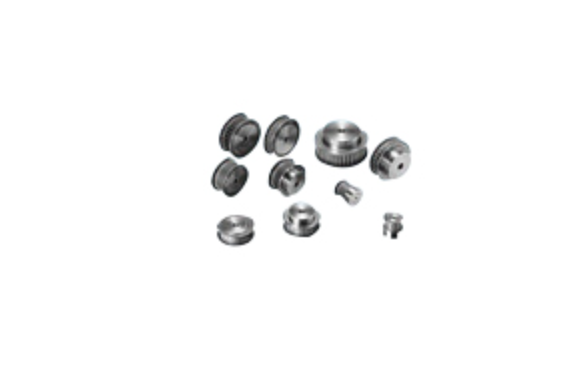

S3M Timing Belt Pulley (P14S3M0100CAL-H-8)
10/15 mm Belt Width
Part Number: P14S3M0100CAL-H-8
Easy specification of shaft hole type/diameter. MISUMI can machine the shaft hole for the pulley of the Mitsuboshi belt without drawings for delivery.
Configured Specifications
| Type | Timing Pulleys | Belt Shape | S3M |
|---|---|---|---|
| Belt Width (mm) | 10 | Number of Teeth(T) | 14 |
| Pulley Shape | C | Material | [Aluminum] High Strength Aluminum Alloy |
| Surface Treatment | Not Provided | Outer Diameter D(mm) | 16 |
| Pulleys/Idlers | Pulley (No Bearing) | Belt Shape Type | Round Tooth Profile Super Torque |
| Shaft bore diameter d(mm) | 8 | Shaft hole specifications | H (round hole) |
