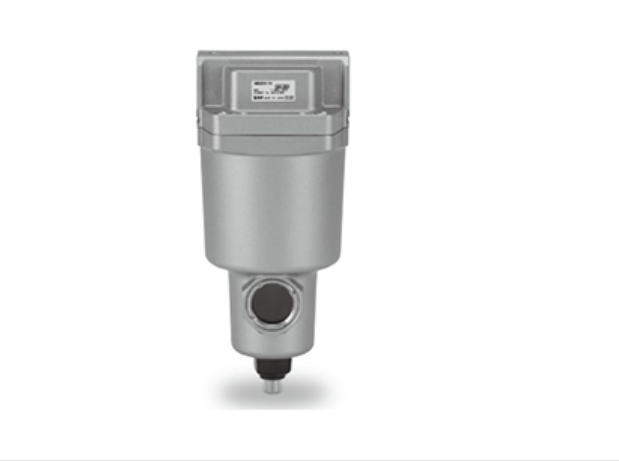

日本SMC水滴分离器AMG250C-02BD-X26
发布时间：2025-01-10
日本SMC水滴分离器AMG250C-02BD-X26
日本SMC水滴分离器AMG250C-02BD-X26
Model
| Model | AMG150C | AMG250C | AMG350C | AMG450C | AMG550C | AMG650 | AMG850 |
|---|---|---|---|---|---|---|---|
| Rated flow L/min (ANR) *Note) | 300 | 750 | 1,500 | 2,200 | 3,700 | 6,000 | 12,000 |
| Piping connection port diameter | 1/8, 1/4 | 1/4, 3/8 | 3/8, 1/2 | 1/2, 3/4 | 3/4, 1 | 1, 1 1/2 | 1 1/2, 2 |
| Weight (kg) | 0.38 | 0.55 | 0.9 | 1.4 | 2.1 | 4.2 | 10.5 |
*Note) Maximum flow capacity at pressure of 0.7 MPa. The maximum flow capacity varies according to the working pressure.
AMG150C to AMG550C: Model Number Notation
AMG150C to AMG550C: model number example
AMG650, AMG850: Model Number Notation
AMG650, AMG850: model number example
Structural Drawings
AMG150C to AMG550C, AMG650: structural drawings
AMG850 structural drawing
*Note) The figure shows the drain cock specification.
*Note) In the structural drawings, a sight glass is included for easy understanding of component parts, but this differs from the actual construction.
Component Parts
