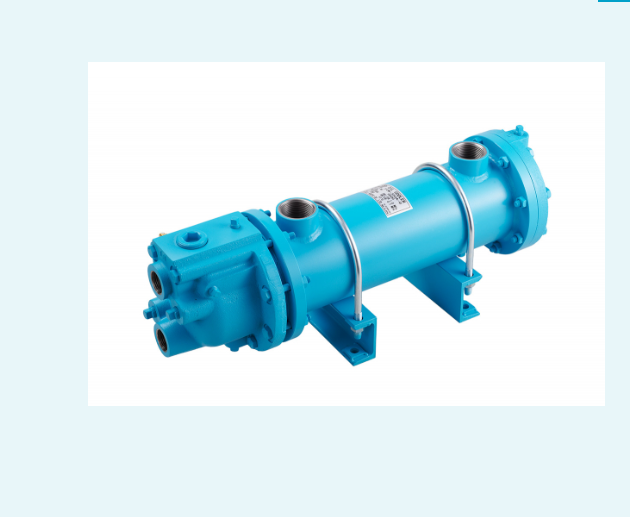

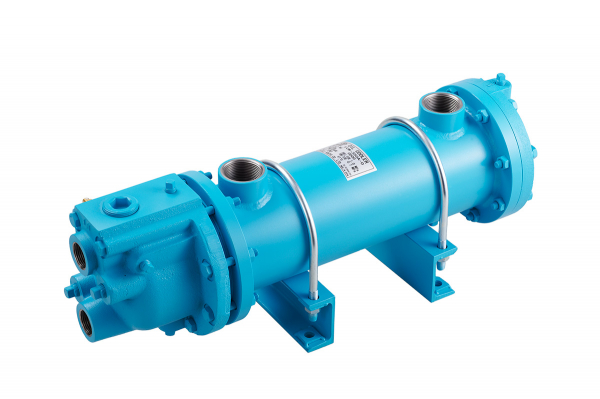

日本TAISEI大生冷却器FCW-370A-2
FCW
| Type | Oil cooler |
|---|---|
| Application | Built in thermostat automatically controls cooling water and keeps temperature setting. |
| Features | ・Valve opening temperature of thermostat is selectable 40℃ (special), 45℃ (special), 51℃ (standard). ・Original φ9 low fin tube enables high performance and downsizing. ・Choose from 3 model types for all sizes for large and small oil flow rates. ・High flexbility of installation by selectable flow direction and adjustable U-bolt stand. |
Specifiations
| Item | Standard Spec. | Option |
|---|---|---|
| Type | Floating tube sheet tube | |
| Maximum working pressure | Shell side: 1.0MPa Tube side: 0.7MPa | |
| Corresponding fluid | Shell side: Mineral oil Tube side: Freshwater | Shell side: Water glycol oil, fatty ester oil, phosphate ester oil, etc. |
| Cooling tube | Specifications: φ9 low- finned tube Material quality: Phosphorus deoxidized copper | |
| Heat transfer area | 2.5-5.5㎡ | |
| Tie-in | Shell side: Rc threaded type Tube side: Rc threaded type | |
| Thermostat | Inlet oil: 51℃ | Inlet oil: selectaable 40℃, 45℃ |
Model
Fluid type
| Code | Fluid type |
| - | Mineral oil |
| G | Water glycol oil |
| Fatty ester oil | |
| F | Phosphate ester oil |
| W | Ｇ＋Ｆ |
FCW
Size
| Code | Heat transfer area (㎡) | Shell dia. |
| 350A | 2.5 | φ139.8 (125A) |
| 370A | 3.5 | |
| 390A | 4.5 | |
| 311A | 5.5 |
Oil quantity classification
| Code | Oil quantity classification *1 |
| 0 | Large |
| 1 | Normal |
| 2 | Small |
Valve Operating temperature
| Code | Oil Inlet Temperature | |
| None | 51℃ | standard |
| 40 | 40℃ | special spec |
| 45 | 45℃ | |
Oil quantity classification
*1 Flow rate classification is basically as follows.
・large oil rate is model with small number
・small oil rate is model with large number
*2 Valve opening temperature
Standard operating temperature is 51℃.
Please contact us price and delivery when operating
temperature is 40℃ and 45℃ because of non-standard model.
Model example：FCW-370A-2
