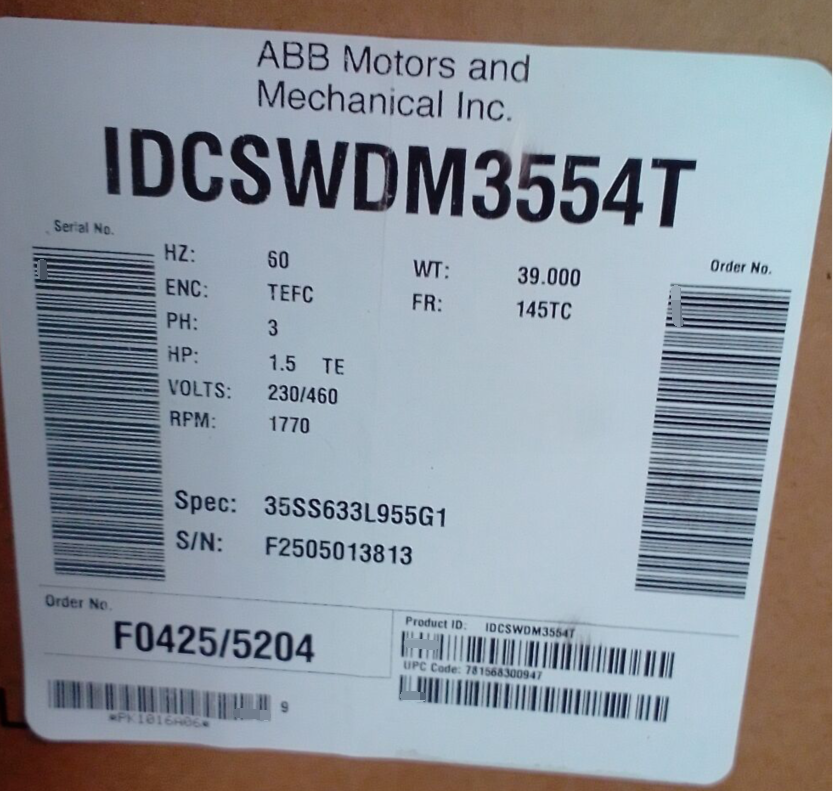

美国葆德BALDOR电机iDCSWDM3554T
发布时间：2025-05-28
美国葆德BALDOR电机iDCSWDM3554T
Performance at 460 V, 60 Hz, 1.5 hp
Typical performance; not guaranteed values.
General Characteristics
Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C11.8 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load48° C
Temp. Rise @ S.F. Load
Start ConfigurationDOL
Break-Down Torque18.8 LB-FT
Pull-Up Torque9.6 LB-FT
Locked-Rotor Torque12.6 LB-FT
Starting Current19.7 A
Load Characteristics
| Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 7.0 | 31.0 | 49.0 | 63.0 | 72.0 | 78.0 | 81.0 | 0.0 |
| Efficiency | 0.0 | 75.1 | 83.5 | 86.0 | 86.5 | 85.8 | 84.8 | 0.0 |
| Speed (RPM) | 1,799 | 1,792 | 1,785 | 1,777 | 1,769 | 1,760 | 1,750 | 0 |
| Line Amps | 1.51 | 1.56 | 1.72 | 1.97 | 2.28 | 2.65 | 3.06 | 0.00 |
Performance Curves
