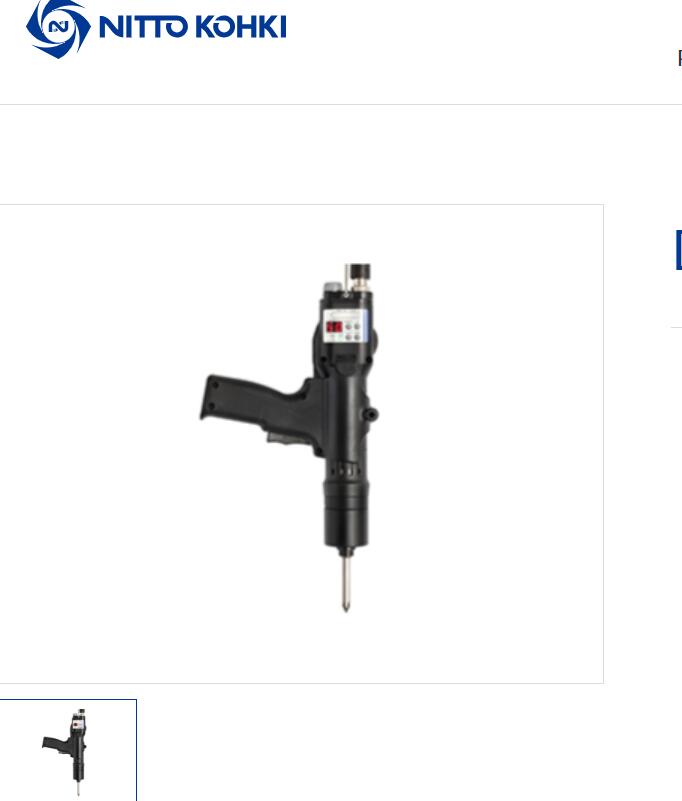

日本NITTO日东工器螺丝驱动器DLV70S06L-AYK/DEA0241N-AZ
DLV70S06L-AYK CE
- Built-in brushless motor
- Automatic speed control function
- Built-in screw counting function
- Settings can be configured with the optional Remote Controller
- ESD (electrostatic discharge) protection structure
Model : DLV70S06P-AYK
Rotation Speed : Low speed
Starting Method : Lever start
Power Source : DEA0241N-AZ
Torque Adjustment: Stepless
Torque (Nm [lbf.in]) : 3.8-7.0 [33.6-62.0]
Free Speed : For the details,
see separate setting rang of speed and torque.
Speed Level : Lv1(Min. Speed) to Lv9(Max. Speed)
Power Consumption: 44 W
Screw Size (mm)
Machine screw : 5.0 - 8.0
Tapping screw : 4.5 - 6.0
Bit Type : OD 6.35 mm Hex. Shank *
Mass : 860 g [1.90 lbs] (with pistol grip)
Input/Output Signal Type : PNP
*Please contact us for 5 mm bit type.
