奥林巴斯OLYMPUS探头V108-RB V109-RB
奥林巴斯OLYMPUS探头V108-RB V109-RB
奥林巴斯OLYMPUS探头V108-RB V109-RB
奥林巴斯OLYMPUS探头V108-RB V109-RB

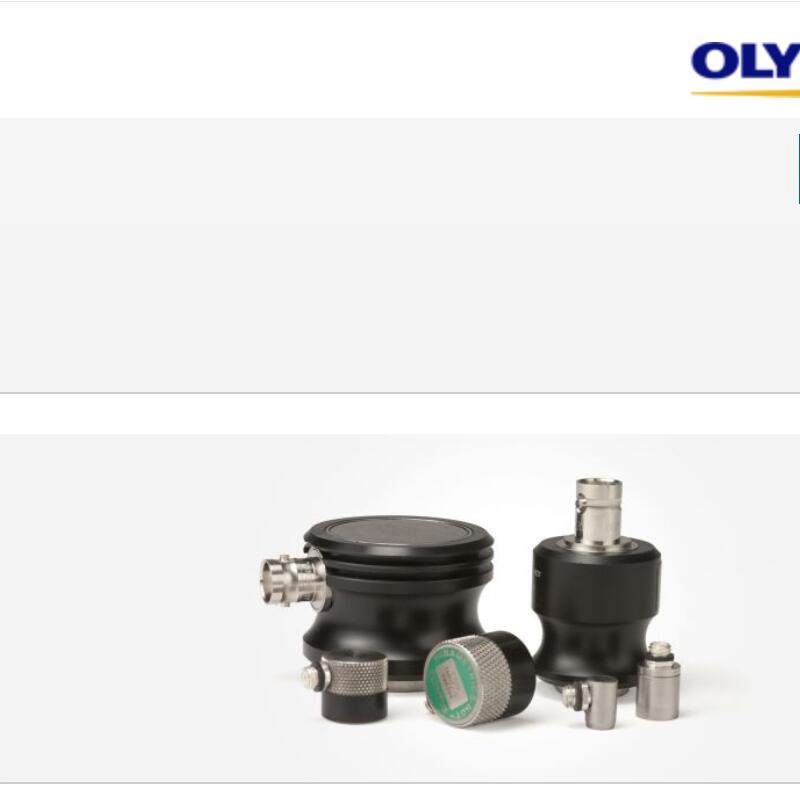

Microscan™ transducers are frequently used for a variety of applications with thickness gauges, flaw detectors, and other ultrasonic instruments.
Microscan transducer part numbers reflect the connector designation:
RM = Right Angle Microdot™
SM = Straight Microdot
RB = Right Angle BNC
SB = Straight BNC
SU = Straight UHF
When selecting a transducer, please review the chart below or consult the transducer frequency range in the instruction manual that was shipped with your gauge.
| Thickness Gauge Model 45MG 38DL PLUS® | Transducer Frequency Range 2.0 to 30 MHz |
Contact Transducers
One of the advantages of a Microscan contact transducer is its versatility; a single transducer can cover a broad thickness range in many engineering materials. Contact transducers are constructed with the unique WC-5 wearplate for greater durability and a longer life.
| Frequency (MHz) | Element (inches) | Diameter (mm) | Transducer Part Number | Transducer Part Code | ||
| 0.5 | 1 | 25 | M101-SB† | U8400017 | ||
| 1 | 1 | 25 | M102-SB† | U8400018 | ||
| 1 | 0.5 | 13 | M103-SB† | U8400020 | ||
| 2.25 | 0.5 | 13 | M106-RM, M106-SM | U8400023, U8400025 | ||
| 2.25 | 0.5 | 13 | M1036 | U8400019 | ||
| 5 | 0.5 | 13 | M109-RM, M109-SM | U8400027, U8400028 | ||
| 5 | 0.25 | 6 | M110-RM, M110-SM, M110H-RM** | U8400030, U8400031, U8400029 | ||
| 10 | 0.25 | 6 | M112-RM, M112-SM, M112H-RM** | U8400034, U8400035, U8400033 | ||
| 10 | 0.125 | 3 | M1016 | U8400015 | ||
| 20 | 0.125 | 3 | M116-RM, M116-SM | U8400038, U8400039 | ||
| 20 | 0.125 | 3 | M116H-RM* | U8400037 | ||
RM = Right Angle Microdot; SM = Straight Microdot; SB = Straight BNC
†High Penetration Transducer *Use with Holder, P/N 2133 **Use with Holder, P/N 2132
