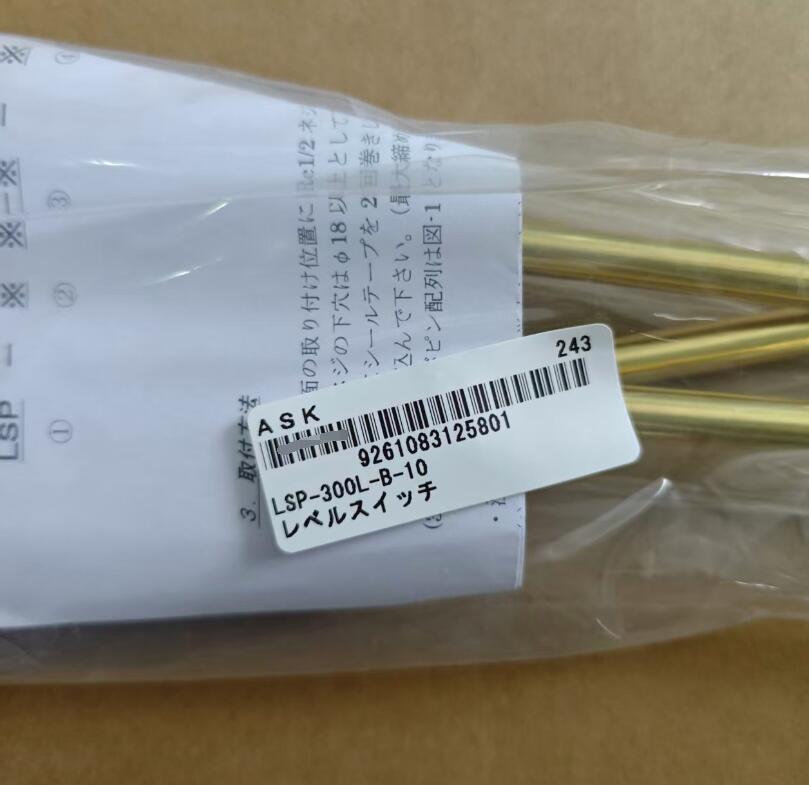

日本ASK液位开关LSP-300L-B-10 LSN-200-L-A-11
发布时间：2025-09-28
日本ASK液位开关LSP-300L-B-10 LSN-200-L-A-11

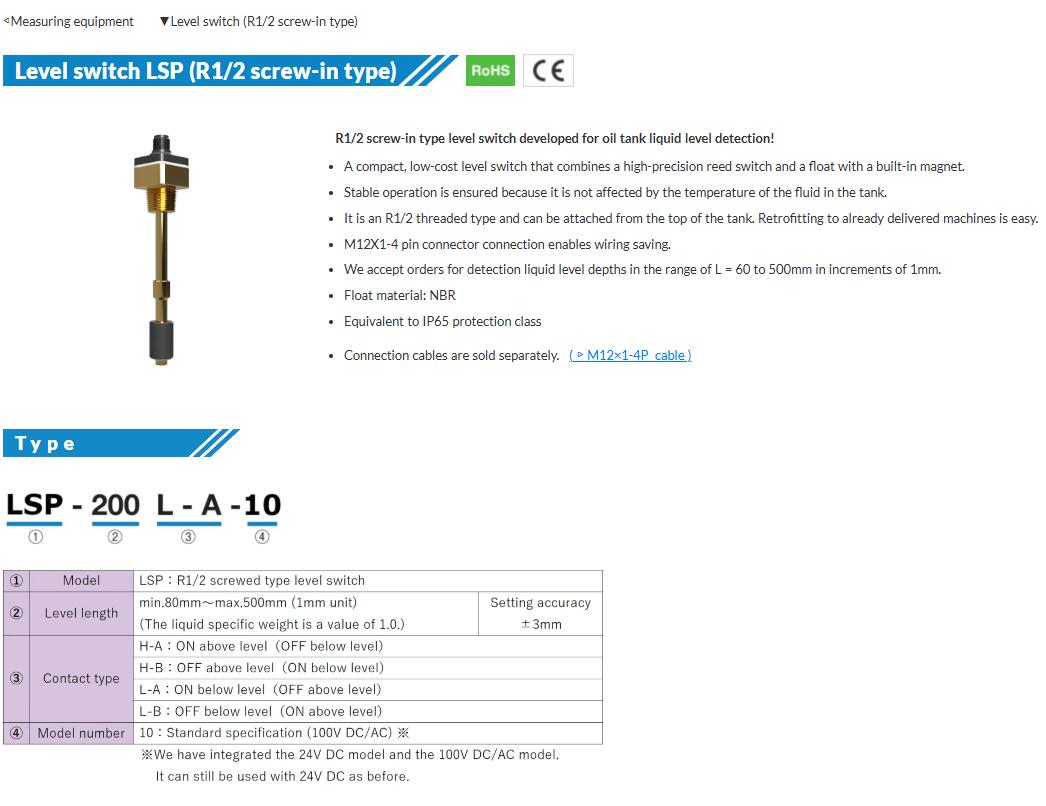

Level switch LSP (R1/2 screw-in type)
R1/2 screw-in type level switch developed for oil tank liquid level detection!
A compact, low-cost level switch that combines a high-precision reed switch and a float with a built-in magnet.
Stable operation is ensured because it is not affected by the temperature of the fluid in the tank.
It is an R1/2 threaded type and can be attached from the top of the tank. Retrofitting to already delivered machines is easy.

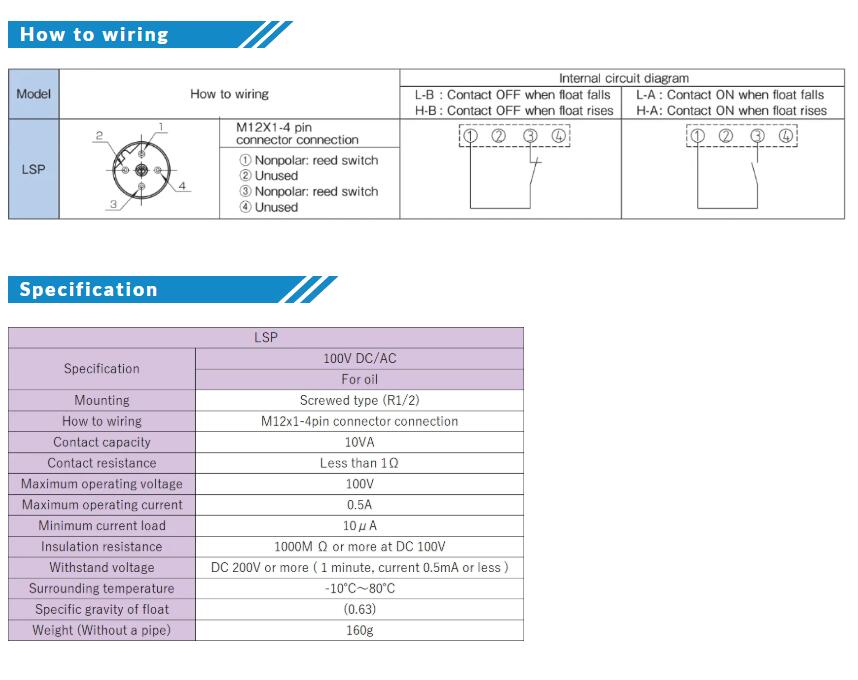

M12X1-4 pin connector connection enables wiring saving.
We accept orders for detection liquid level depths in the range of L = 60 to 500mm in increments of 1mm.
Float material: NBR
Equivalent to IP65 protection class
Type
