日本派特莱patlite信号灯LR7-402WJBW-RYGB/MES-302A-RYG
发布时间：2024-01-13
日本派特莱patlite信号灯LR7-402WJBW-RYGB/MES-302A-RYG
LR7-402WJBW-RYGB /SZ-320KS /CLA6S-24A-CD /WEP-402FB-RYGB

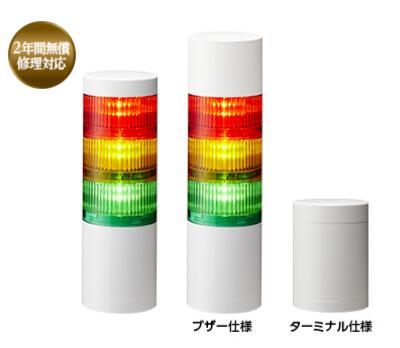

Stack Lights (MES-302A-RYG)
Super-Slim LED Signal Light, ME-A/MES-A Series
Part Number: MES-302A-RYG
The ME series modular signal tower offers a super slim profile making it optimal in for use in applications where space is limited, while still providing a super bright LED light source.
[Features]
・Multilayer lighting up to 4 tiers.
・Colors options include red, blue, yellow, green, and white.
・IP42 environmental rating.
・Light dome made of heat and shock resistant polycarbonate resin.
・Super slim 25 mm diameter base.
・NPN control oriented.
・UL E215660 compatible.
・Conforms to CE requirements.
・ RoHS compliant.
| Type | Standard | Shape | Circular |
|---|---|---|---|
| Thickness | [Other] Φ 25 | Rated Voltage(V) | 24 V DC |
| Steps = N | 3 | Color Top Stage | Red |
| Color Second Stage | Yellow | Color Third Stage | Green |
| Color Fourth Stage | - | Color Fifth Stage | - |
| Light Source | LED | Mounting Method | Direct Mount |
| Buzzer | Not Included | Constant/Blinking | Constant |
| Representative Standard | CE / UL | Body length | Short |
| Protective Structure | IP42 |
