日本SHOWA润滑油泵注油机LCB4 10898E
发布时间：2024-03-16
LCB4 Lubrication Unit
Motorized pump unit for the volumetric type system
Combines a MLB01W2 pump with a 2L tank
Lubrication unit without an IC timer (control board)
The LCB4 are a compact centralized lubrication unit supplied without an IC timer (control board).
LCB4 pump units are available with varying combinations of a pressure switch, pressure gauge or a float switch. Requires connection to a timer system to enable intermittent operation.
Form code
Specifications
| MODEL CODE | Pump Utilized | Discharge Vol. (L / minute) | Discharge Pressure | Tank Capacity (L) | Effective Tank Capacity (L) | Viscosity Range |
| LCB4 | MLB01W2 | 0.1L / 0.12L 50Hz / 60Hz | 1.2MPa | 2 | 1.3 | 50～800 m㎡/s |
※Lubricant can be discharged by pressing the “Instant button”. The pump will continue to operate until the button is released.
MOTOR SPECIFICATION
| Voltage & Freq. | 100V 50Hz | 100V 60Hz | 200V 50Hz | 200V 60Hz |
| Current (A) | 1.5A | 1.2A | 0.8A | 0.6A |
| Output & Poles | 17W × 2P | |||
| Operation | Max. 5mins with resting time of operation × 2 | |||
※E – type insulation
※Minimum 2 mins resting time reqired

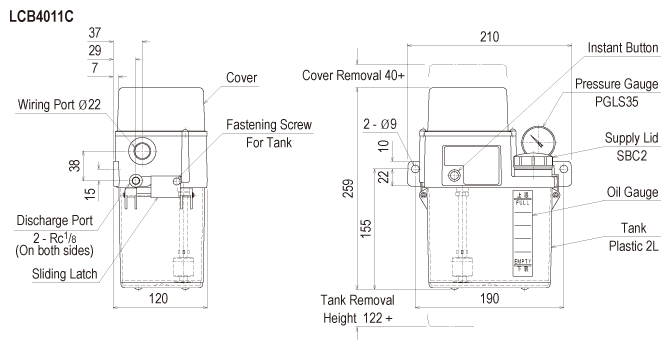

Drawing
