Mass Flow Sensor Model MCS100

www.azbil.com

Can measure mass flow rate according to the standard condition (20℃, 1 atm) of gas without temperature nor pressure compensation.

Small and light weight which can be installed wherever, it’s suited for a variety of flow measurements in such as laboratory and various industry applications. (33.5 x 10.5 x 17.0 mm, just 9g, without cable)

Fast response time : 5ms

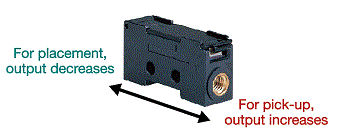

Bidirectional flow range

Low power consumption: 12mA max. at 24Vdc

Free mounting position and not required straight piping length

Measurement flow range line-up

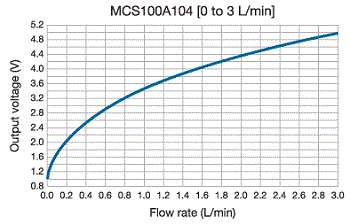

MCS100A104 : 0 to 3L/min MCS100A112 : 0 to+500mL/min MCS100A116 : 0 to 5L/min MCS100A120 : 0 to 10L/min

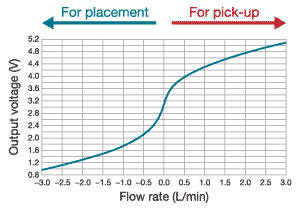

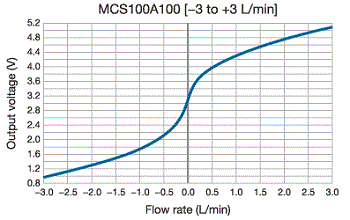

MCS100A100 : -3 to +3 L/min MCS100A108 : -500 to +500mL/min MCS100A128 : -10 to +10L/min

Construction specification

Typical applications

- Measures the mass flow rate intake of the pump without effects from temperature fluctuation or changes in atmospheric pressure. - Operates on battery power on handheld equipment.

- Useful for control of oxygen flow rate from compressor, without effects from fluctuation in room temperature or altitude. - Useful for replacing from a float meter.

- Measures flow rate of air supplied to eliminate heat haze. - Measures flow rate of nitrogen supplied to prevent oxidation. - Useful for replacing from a float meter or pressure gauge.

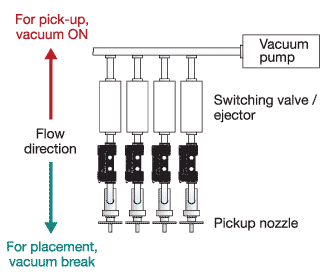

- Can be installed close to the pick-up nozzle. - Fast response is suitable for pick-up detection. - Measures slight differences in flow rate which cannot be detected by pressure. - Not affected by fluctuation in suction pressure, thanks to mass flow measurement. - Clogged or crushed nozzle is detectable by analog output.

pick-up
