Main Specifications
| Product Name | H4A-001 |
|---|
| Purpose of use | Precise blade positioning |
|---|
| Contact diameter | Φ5 |
|---|
| Repeatability | 0.001mm (Recommended operating speed of 50-200mm/min) |
|---|
| Protective structure | IP67 |
|---|
| Contact life time | 3 million |
|---|
| Pretravel | 0 |
|---|
| Stroke | 2mm |
|---|
| Contact Force | 2N |
|---|
| Cable | Oil resistant φ5 / 2 cores Tensile strength 30N, Minimum bending R7 |
|---|
| Accessories | 0 |
|---|
| Operating temperature range | 0 - 60℃ (Ice-free) |
|---|

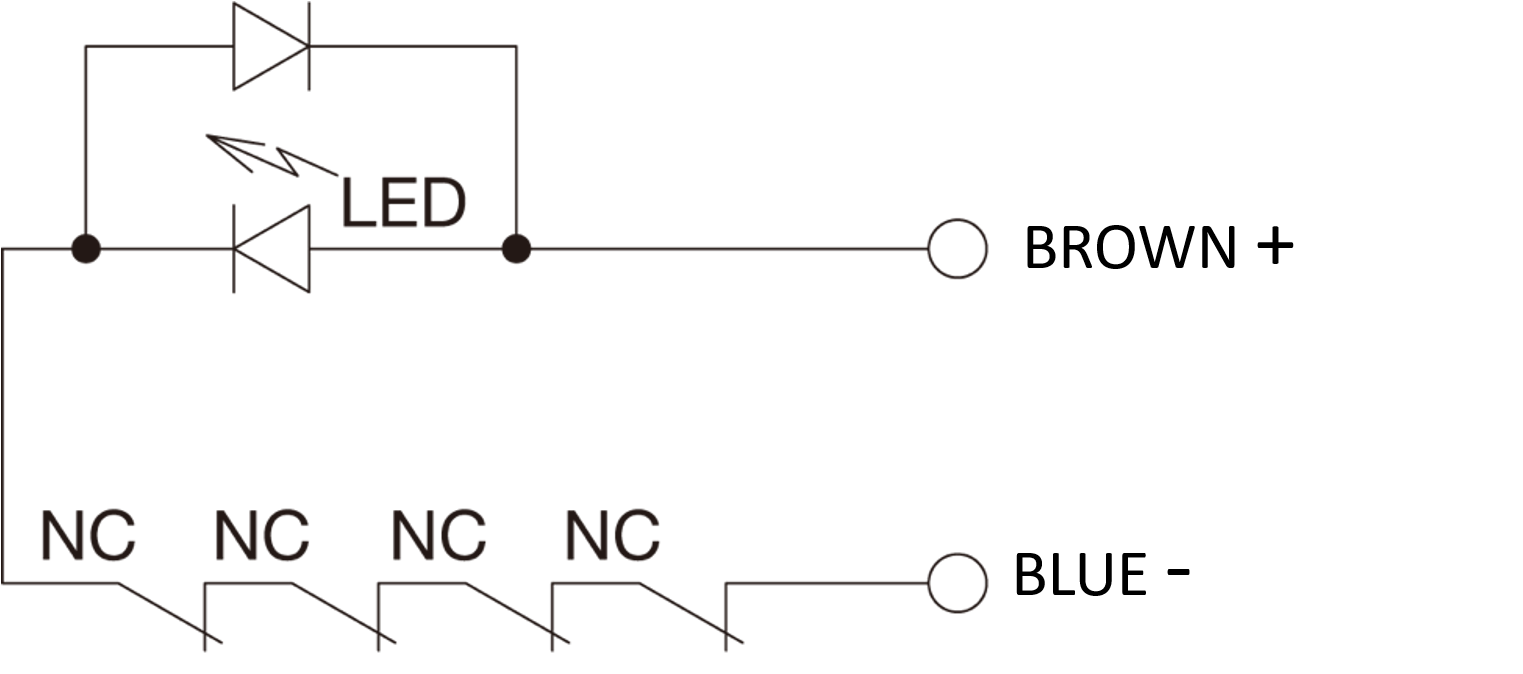

Circuit Diagram
![CNC旋盤用ツールセッター[H4Aシリーズ]の回路図](/public/Home/images/upload/image/20240321/1711007084970734.png)
