Built-in function generator for customizable waveform generation!

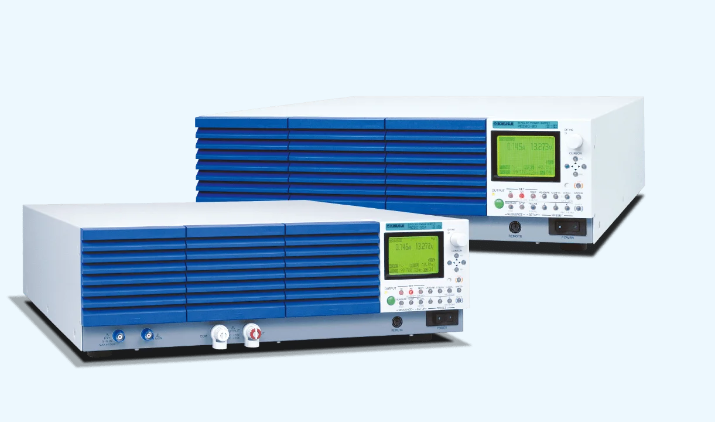

In addition to basic sine, square and triangular waveforms, the PBZ allows the operator to customize up to 16 user-defined waveforms with the internal function generator. Amplitude, frequency, start phase, frequency sweep and square wave duty can be programmed as needed. 16 user-defined waveforms can be freely edited and registered to the PBZ internal memory. The sequence feature (see P6) allows for each step in an individual waveform to be customized in detail for a maximum of 1024 steps among 16 programs. *Waveform editing requires proprietery software (Wavy for PBZ).

Sequence Feature

Sequence customization for convenient waveform generation!

The basic sine, triangular and square waveforms (as well as the 16 user-defined waveforms) can be programmed per sequence step, allowing for easy creation of complex sequences. Sequences are composed of up to 1024 steps, which can be allocated among a maximum of 16 programs. The script function allows for multiple programs to be c ombined and executed as needed.As shown on the right, Program 1 uses 8 steps, allow-ing for 1016 steps to be allocated among the remaining 15 programs. (1024 – 8 = 1016 steps)The script function allows the operator to specify the sequence and number of repitions for set programs. A maximum of 50 rows can be assigned to 1 script for both CV and CC mode.
