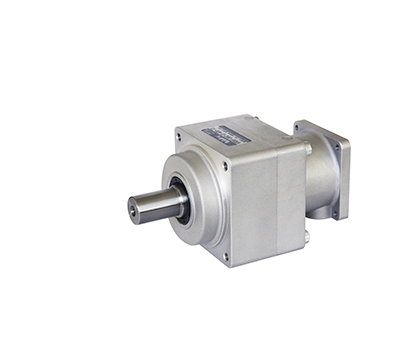

日本NIDEC-SHIMPO电产新宝减速器VRXF-9C-K-400-T3
发布时间：2024-03-22
Basic information
Size B、C、D、E
Reduction ratio 3 ～ 81
Backlash Standard backlash: 15 arc-min / LB: 5arc-min (10 arc-min) / PB: 3 arc-min
Nominal output torque 3.06 ～ 119Nm
Maximum output torque 8.23 ～ 274Nm
Nominal input speed 3000rpm
Maximum input speed 6000rpm
Allowable radial load ＊1 392 ～ 3530N
Allowable axial load ＊2 196 ～ 1765N
Weight ＊3 0.55 ～ 10.8kg
＊1 The radial load applied to the output side shaft center.
＊2 The axial load applied to the output side bearing.
＊3 The weight may vary slightly model to model.
