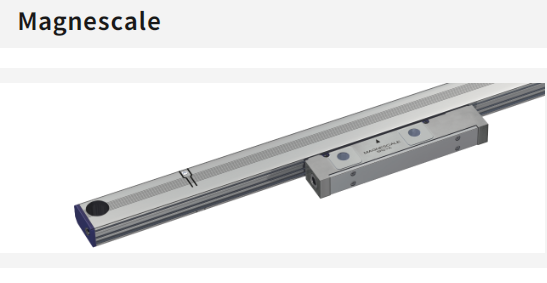

Slim type allows installation in narrow spaces
Magnetic system enables use even in environments with condensation, oil, and other adverse coditions
Supports the communication protocol of each supporting manufacturer
Same thermal expansion as iron
Protocol : FANUC, Mitsubishi, YASKAWA, SIEMENS AG
System Configuration Diagram
Specifications
Specifications
＊For resolution of 0.005 µm, please contact our sales department.

Magnescale reserves the right to change product specifications without prior notice.

Model name SR27A-×××○□AX SR27A-×××○□BX
SR27A-×××○□DX SR27A-×××○□FX SR27A-×××○AZY
Effective length (L: mm) 70 to 2,040
Thermal expansion coefficient 12±1 × 10-6/ °C
Accuracy (at 20°C) (3+3L/1,000) µmp-p or (5+5L/1,000) µmp-p,
L: Effective length (mm)
Reference point Center, or user-selected position (Set at factory shipping) Fixed to center Center, or user-selected position (Set at factory shipping) Fixed to 10 mm from left end of
effective length
Output signal Absolute serial bidirectional signal, compliant with EIA-485 Compliant with DRIVE-CLiQ
Compatible controllers FANUC α/αi interface compatible Mitsubishi Electric Yaskawa Electric SIEMENS AG
Resolution Selectable from 0.005*, 0.01, 0.05, 0.1, 0.5 and 1 µm (Factory set) Selectable from 0.005*, 0.01, 0.05 and 0.1 µm (Factory set)
Selectable from 0.01, 0.05, λ/32768 and λ/4096 µm (λ=320)(Factory set) 0.01 µm (Factory set)
Maximum response speed 200 m/min
Functional safety – IEC 61508, EN/BS 62061 SIL 2
EN/BS/ISO 13849-1 Cat. 3 / PL d
EN/BS 61800-5-2
Product Safety FCC Part15 Subpart B Class A
ICES-003 Class A Digital Device
EN/BS 61000-6-2, EN/BS 61000-6-4
Product Environment EN/BS 63000
Operating temperature range 0 to +50°C
Storage temperature range -20 to +55°C
Vibration resistance 150 m/s2 (50 Hz to 3,000 Hz)
Impact resistance 350 m/s2 (11 ms)
Protective design grade IP54 (Air purge not included), IP65 (Air purge included)
Power supply voltage range DC+4.75 to +5.25 V DC+17 to +30.8 V
Maximum power consumption 1.3W or less (4.75 V or 5.25 V) 1.75W or less (17V)
1.9W or less (30.8 V)
Consumption current 250 mA (5 V) (when the controller is connected) 75 mA (24 V)
(when the controller is connected)
Mass Approx. 0.39 kg+ 1.53 kg/m or less
Compatible cables
(types without relay
connectors)
Maximum cable length CH23A-***NVF
13 m CH23-***NVM
13 m CH23-***NVG
11 m CH22-***NSMY
30 m
Compatible cables
(types with relay connectors)
Maximum cable length CH23A-***NVK + CH23A-***NPFA
30 m CH23-***NVK + CH23-***NPMA
30 m CH23-***NVK + CH23-***NPGA
30 m CH22-***NSMF + CH22-*** NSFY
30 m
