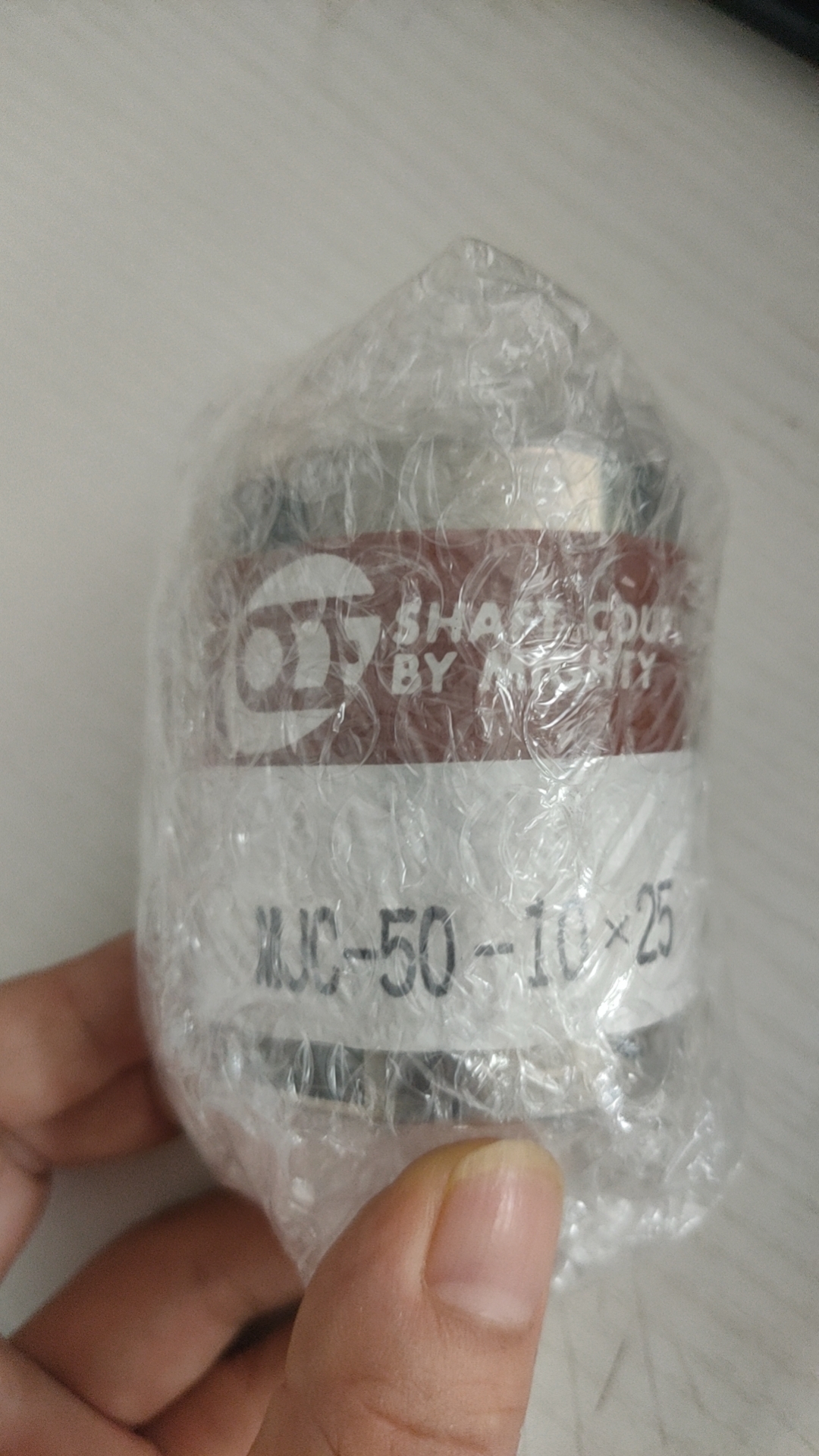

日本MIGHTY麦格特联轴器MJC-50-10X25

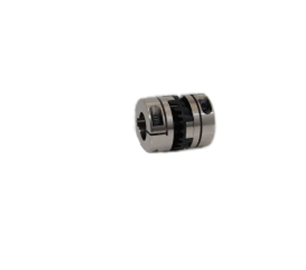

Flexible Shaft Coupling (MJC-50-10X25)
Oldham, Clamping, MJC Series
Part Number: MJC-50-10X25
•Application : Encoder, Servo Motor, Standard, Stepping Motor
•Body Material : Aluminum Alloy
•Allowable Misalignment : Angular, Eccentricity
•Feature : High Accuracy, High Durability, No Backlash, Vibration Insulation
For complete product overview and details on Oldham Coupling, MJC Series see the sections below:
Configured Specifications
Type Oldham Allowable Misalignment Angular Misalignment / Eccentricity
Application Standard / Servo Motor / Stepping Motor / Encoder Allowable Torque Range(N⋅m) 20.01 to 50.00
For Shaft Size D1(mm) 10 For Shaft Size D2(mm) 25
Outer Diameter A(Ø) 50 Overall Length W(mm) 59.7
Features High accuracy / High durability / Backlash 0 / Vibration Absorption Body Material [Aluminum] Aluminum Alloy
Allowable Torque(N⋅m) 30 Allowable Angular Misalignment(deg) 1
