日本油研(YUKEN)电磁阀DSG-01-3C4-D24-N1-50T

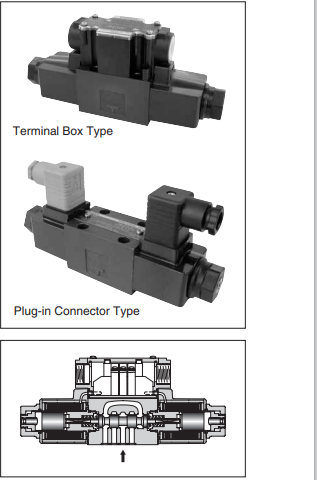

■ 1/8 Solenoid Operated Directional Valves, DSG-01 SeriesThese are Solenoid Operated Directional Valves of high pressure, highflow and low pressure drop, the features of which can be materializedby employing a powerful wet type solenoid and the rational flowchannel design.● High Pressure & High Flow RateIn comparison to our existing lines, both the pressure and flow ofthese valves are much increased.● Max. Operating Pressure: approx. 10 % increased [31.5→35 MPa(4570 →5080 PSI)]● Max. T-Line Back Pressure: approx. 30 % increased [16→21 MPa(2320 →3050 PSI)]● Max. Flow Rate: approx. 60 % increased [63→100 L/min (16.64→26.42 U.S.GPM)]● Low Pressure DropThe pressure drop of these valves is reduced by 10 % from 1.0 to 0.9MPa (145 to 131 PSI), in comparison to our existing lines*; the valveseffectively reduce the energy consumption of the unit.{* At Flow Rate: 60 L/min (15.9 U.S.GPM), Spool Type: 3C2 (P→A)}● Compact & Small MassDespite of high pressure, high flow and low pressure drop, these valvebodies are compact and lightweight with DC double solenoids; theoverall length and mass are reduced from 210 to 205 mm (8.26 to 8.07inch) and from 2.2 to 1.85 kg (4.85 to 4.08 lbs), respectively.● Shockless type availableIn addition to the standard valves for high pressure and high flow, ashockless type capable of minimizing noise and vibration in pipingduring spool changeover is also available.● Stable OperationDue to the powerful magnetic and spring force of the solenoids, thesevalves exhibit a high tolerance to contaminants and especially stableoperation.● IP65-equivalent high dust- and water-proofThese valves demonstrate excellent dust- and water-proofcharacteristics, in compliance with I. E. C. Pub. 529. IP65 and JIS C0920 IP65 (dust- and jet-proof type).● Usable in products of various standardsThese standard valves are CE certified for installation in equipment overseas.UL/CSA certified products are also available.■ Specifications★ 1. For details of L-DSG-01, please contact us.★ 2. Maximum flow indicates a ceiling flow depends on the type of spool and operating condition, refer to the List of Spool Functions on pages 347to 351 for details.Terminal Box TypePlug-in Connector TypeMax. ChangeoverFrequencyCycle/min {min–1}Max. OperatingPressureMPa (PSI)Max. T-LineBack PressureMPa (PSI)Masskg(lbs.)Valve Type Model NumbersMax. FlowL/min(U.S.GPM)★2★1Standard TypeDSG-01-3C - -70/7090DSG-01-2D2- -70/7090DSG-01-2B - -70/7090S-DSG-01-3C - -70/7090S-DSG-01-2B2- -70/7090L-DSG-01-3C - -70/7090L-DSG-01-2D2- -70/7090L-DSG-01-2N - -70/7090L-DSG-01-2B - -70/7090Shockless TypeLow Wattage(14W)Type100(26.4)63(16.6)40(10.6)35(5080)25(3630)16(2320)21(3050)1.85(4.08)1.85(4.08)1.4(3.09)1.4(3.09)1.4(3.09)1.85(4.08) 21(3050)16(2320)300R Type Sol. Only120300R Type Sol. Only120
