日本DDK线缆连接器408JE-101-ROHS
日本DDK线缆连接器408JE-101-ROHS
Part Number: 408JE-101-ROHS
The 408JE series connectors for standard interface systems conforms to IEEE-STD-488-1978 and IEC-Pub.625-1 international standards.
[Features]
· Use of these connectors enables devices to interact, allowing for systemization and automation of measurements.
· The 408JE series IEEE-IB connectors conform to radio interference standards (FCC, CISPR, VDE standards), and are covered by a metal hood to improve shielding.
· The hood's cable clamp is designed to be as small as possible, making it even easier to use.
· The cable specifications conform to the most recent IEEE-STD-488-1978 standards.
(i)Caution

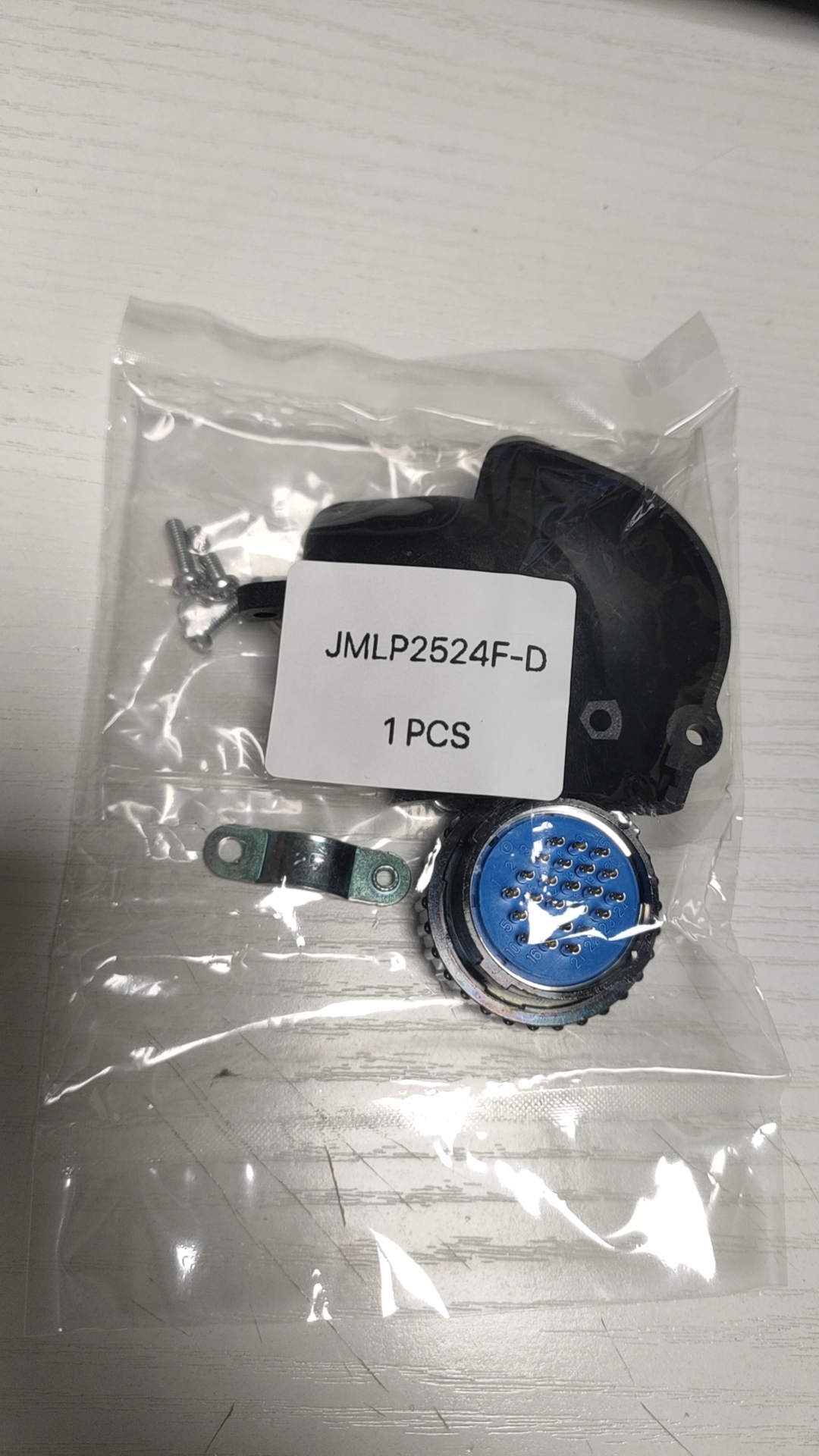

Product image is for representative purposes only and not reflective of every product available on this page.
Configured Specifications
Connector Type IEEE Connector Manufacturer DDK Ltd.
Connector Shape Angle Processing Method Solder
Cable Shape Circular Hood Die-Cast
Hood Screw M3.5 Screw Lock Number of Cores 24
Specification Cable assembly with dual end connector Shield Double shield
Length(m) 1 Connector Combination use male/female
