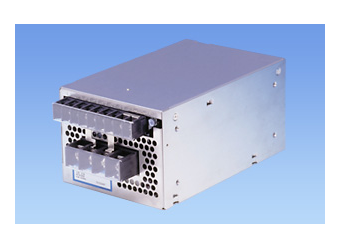

日本科索COSEL开关电源PAA300F-24
发布时间：2024-04-12
日本科索COSEL开关电源PAA300F-24
日本科索COSEL开关电源PAA300F-24
Ordering Information and Options
PAA(1) 300(2) F(3) - 5(4) - □(5)
(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional
C: with Coating
G: Low leakage current
R: Positive logic control
W: with Alarm signal
Specification
| Contents | Specifications | |
|---|---|---|
| Input Voltage | AC85 - 264V 1Φ | |
| Output | Wattage | 336W |
| Voltage/Current | 24V 14A | |
| Adjustable Voltage Range | ±10% | |
| Protection Circuit And Others | Overcurrent Protection | Works over 105% of rating and recovers automatically |
| Overvoltage Protection | Works at 115 - 140% of rating | |
| Remote ON/OFF | Provided | |
| Remote Sensing | Provided | |
| Others | - | |
| Operating Temperature/Humidity | -10 to +65℃, 20 - 90%RH (Non condensing) * | |
| Safety And Noise Regulations | Agency Approvals (At only AC input) | UL60950-1, EN60950-1, EN50178, CSA C22.2 No.60950-1 Complies with DEN-AN and IEC60950-1 |
| Conducted Noise | Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B | |
| High Attenuation | Complies with IEC61000-3-2 | |
| Others | Dimensions (WxHxD) | 120x92x190mm (without terminal block and screw) |
| Weight | 2.2kg max | |
| Cooling Method | Forced cooling (internal fan) | |
