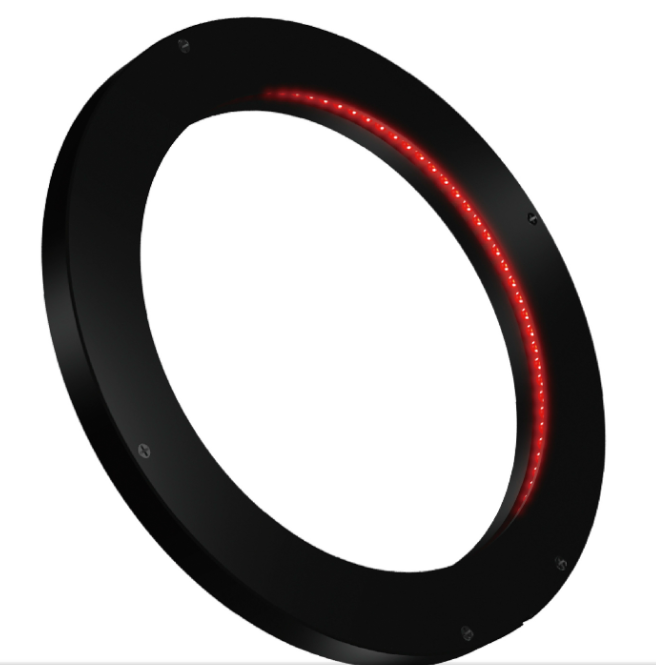

日本CCS低角度环形灯LDR-LA1
日本CCS低角度环形灯LDR-LA1
日本CCS低角度环形灯LDR-LA1
LDR-LA1 Series
LEDs are mounted perpendicularly on a line-shaped board and arranged in a ring facing horizontally.
The thin design has a thickness of only 10 mm.
These Ring Lights are used extremely close to the workpiece.
Product Lineup
Features Characteristics/Data Custom Order Example Imaging Example
Features
Illuminating closest to the workpiece
Allows for illuminating closer to the workpiece than the LDR2-LA series. Perfect for imaging of minute unevenness, damage, or engraved characters.
Imaging example for the LDR-206SW2-LA1:Exterior imaging of food containers
LEDs mounted horizontally
Achieved a thin device that is 10 mm thick by mounting LEDs horizontally in one line. Helps save space because it can be installed near the workpiece.
Cross-section image of the LDR-146-LA1
Example configuration
LEDs are arranged facing horizontally in a ring shape. It can be used extremely close to the workpiece.
LDR-146-LA1
