High resolution lenses

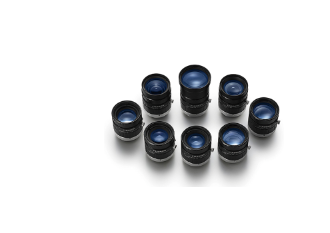

[photo] HF-HA-1S Series lenses standing upright and grouped together in a circle
HF-HA-1S Series
Fujinon HF-HA-1S Series offers a resolution of up to  6.2μm pixel pitch (equivalent to 1.5 megapixel) and is suitable for 2/3" sensors*1.

*1 DF6HA-1S supports 1/2 type.
HF-HA-1S series specification sheet
HF-HA-1S series is the successor series of HF-HA-1B series and offers the same optical performance and the same mechanical dimensions.

Model
()old model name Compatible format sizes Focal length
(mm)
4/3 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
DF6HA-1S
(DF6HA-1B) － － － － － － ● ● 6
HF9HA-1S
(HF9HA-1B) － － － － ● ● ● ● 9
HF12.5HA-1S
(HF12.5HA-1B) － － － － ● ● ● ● 12.5
HF16HA-1S
(HF16HA-1B) － － － － ● ● ● ● 16
HF25HA-1S
(HF25HA-1B) － － － － ● ● ● ● 25
HF35HA-1S
(HF35HA-1B) － － － － ● ● ● ● 35
HF50HA-1S
(HF50HA-1B) － － － － ● ● ● ● 50
HF75HA-1S
(HF75HA-1B) － － － － ● ● ● ● 75
● Compatible sensor size (std.): Ideal size to maximize the target resolution.

Main features
Vibration-resistant and impact-resistant design
The Fujinon lenses incorporate the original mechanical design *2 of Fujifilms´Anti Shock & Vibration Technology. This makes them robust against shocks and vibrations and applicable for various applications and environments.

*2 The company's technology that has been patented
[photo] Lenses being tested on plates of vibration machine
[According to JIS C 60068-2-6]

Vibration frequency 10-60Hz (amplitude 0.75mm) vibration frequency 60-500Hz (acceleration 100m/S2)
50Cycle
Extensive lineup of 8 models
The HF-HA-1S Series consists of 8 models with focal lengths from 6mm to 75mm that fit to almost every application.

Compact design
The lenses realise a compact design with an outer diameter of only φ29.5mm.

*Only HF75HA-1S is φ31.5mm
Low F-number
The low F-number up to F1.2 ensures a clear image even in low light situations.
