65 Watt Series - Desktop Type
65 Watt Series - Desktop Type 65 Watt Series - Desktop Type

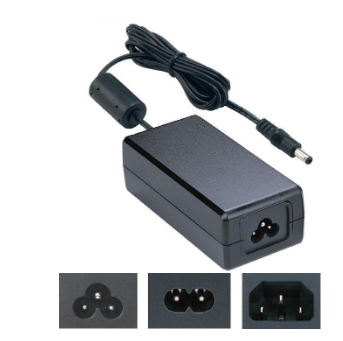

Product ID: ATS065T-□XXX
XXX = O/P Voltage

□ = P : C6 / C14
□ = A : C8

Download Catalogue Download Now !
Features:
* IEC/EN/UL 62368-1 & 60950-1
* 100-240VAC Universal Input
* Regulated Output with Low Ripple Noise
* Safety Agency Requirements and EMI/EMS Certified
* Private Label Marking Available
* Modified and Custom Design Available
* 1 Year Warranty

Green Mode
CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI
No Load Power Consumption Less Than 0.15W


Model O/P Voltage O/P Current Watt
ATS065T-□120 12.0V 5.00A 60W
ATS065T-□135 13.5V 4.82A 65W
ATS065T-□150 15.0V 4.34A 65W
ATS065T-□160 16.0V 4.07A 65W
ATS065T-□180 18.0V 3.62A 65W
ATS065T-□190 19.0V 3.43A 65W
ATS065T-□200 20.0V 3.25A 65W
ATS065T-□240 24.0V 2.71A 65W
ATS072T-□240 24.0V 3.00A 72W
    ATS065T-□241(*) 24.0V 2.71A 65W
    ATS065T-□242(*) 24.0V 2.71A 65W
ATS065T-□300 30.0V 2.17A 65W
ATS065T-□320 32.0V 2.04A 65W
    ATS065T-□321(*) 32.0V 2.04A 65W
ATS065T-□480 48.0V 1.36A 65W
ATS065T-□560 56.0V 1.17A 65W
(*) With peak current design
      ATS065T-P/A241 with peak current 11.0A
      ATS065T-P/A242 with peak current 11.0A
      ATS065T-P/A321 with peak current 3.9A
Input
Voltage 100 - 240VAC
Line Frequency 50-60Hz
Current 1.4A Max. for 65W / 1.6A Max. for 72W
Protection Internal Primary Current Fuse
Configuration IEC60320/ C6, C8, C14
Output
Load Regulation ± 5% (Typical)
Ripple & Noise 1% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Holdup Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection
Ferrite Core Yes
Safety Approvals
 CB / UL / cUL / FCC / GS / CE / CCC / PSE / BSMI / RCM / LPS
Electrical
Topology Switching Flyback
Dielectric Withstand 3000 VAC Primary – Secondary
Leakage Current 0.25mA @ 2 Pin / 3.5mA @ 3 Pin
Efficiency
DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI Certified

EMC Standards EN55032
EN61000-3-2,3
EN55024
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature 0 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity  Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Case Dimension L 115 x W 53 x H 38 (mm)
Weight 310g (Ref.)
Order Information:
Minimum Order: Negotiable
OEM/ODM Product, Branded Product, Buyer's Label Offered
FOB: HK
