日本松下Panasonic臂碳刷DH5742K2

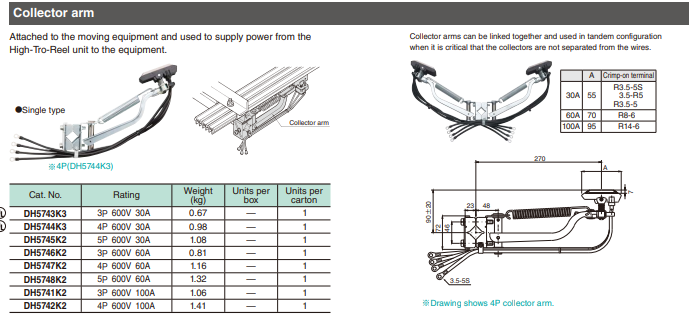

Collector armCollector arm support parts for transvereseCollector (replacement parts)32Unit : mm High-Tro-Ree <Tension Type>•Single type※4P(DH5744K3)※4P(DH5787K1)※Drawing shows 4P collector arm.Collector arms can be linked together and used in tandem configurationwhen it is critical that the collectors are not separated from the wires.A B Crimp-on terminal30A 55 85R3.5-5S3.5-R5R3.5-560A 70 100 R8-6100A 95 125 R14-6A Crimp-on terminal30A 55R3.5-5S3.5-R5R3.5-560A 70 R8-6100A 95 R14-6Attached to the moving equipment and used to supply power from theHigh-Tro-Reel unit to the equipment.Applicate for 30A, 60A, and 100A collector arms.When installing a collector arm horizontally, mounted collector armsupport parts for transverse on base of the collector arm as shown.The number of collectors in a set conforms to the number of poles.Replace collectors when they wear down to the replacementindication line (approx. 5,000km).Cat. No. Rating Weight(kg)Units perboxUnits percartonDH5743K3 3P 600V 30A 0.67 — 1DH5744K3 4P 600V 30A 0.98 — 1DH5745K2 5P 600V 30A 1.08 — 1DH5746K2 3P 600V 60A 0.81 — 1DH5747K2 4P 600V 60A 1.16 — 1DH5748K2 5P 600V 60A 1.32 — 1DH5741K2 3P 600V 100A 1.06 — 1DH5742K2 4P 600V 100A 1.41 — 1
