日本NACHI不二越齿轮油泵IPH-6B-125-L-11

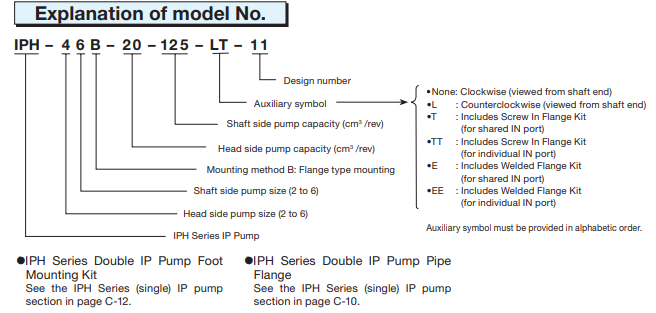

IPH SeriesDouble IP Pump3.6 to 125.9cm3/rev30MPa All the types in this new design (11D) series are installation compatible with the previous design (10D). Note,however, that there is no longer compatibility for some of the seal components between the IPH-3 and IPH-4sizes and the 3 and 4 sizes.FeaturesqConfigured with the high-pressure,low-noise IPH Series and IP pumps,these double pumps greatly expandthe range of application for the IPpump.wA wide selection of pump combinations provides options that are perfect for just about any type of application imaginable.SpecificationsModel No.Discharge Rate (1200min-1 No-load) Revolution Speed Operating PressureMPa{kgf/cm2}Required Power at1200min-1, 21MPakWVent Sideℓ/minShaft Sideℓ/minMin.min-1Max.min-1IPH-22B-*-*-(*)-11IPH-23BIPH-24BIPH-25BIPH-26B4.3 to 9.84.3 to 9.812.2 to 18.924.8 to 38.748.9 to 76.697.5 to 151.0 6002000Rated: 21{214}Max: 30{306}7.9911.619.534.564.0IPH-33BIPH-34BIPH-35BIPH-36B12.2 to 18.912.2 to 18.924.8 to 38.748.9 to 76.697.5 to 151.015.323.138.167.7IPH-44BIPH-45BIPH-46B24.8 to 38.724.8 to 38.748.9 to 76.697.5 to 151.050031.046.075.6IPH-55BIPH-56B48.9 to 76.648.9 to 76.697.5 to 151.040061.090.6IPH-66B 97.5 to 151.0 97.5 to 151.0 300 119.3Note) 1. Maximum Pressure: Maximum pressure limit when there are frequent pressure changes. However, maximum pressure is the same as ratedpressure when load is applied to the head side and shaft side simultaneously.2. Suction Pressure: -0.02 to +0.03 MPa {−0.2 to +0.3 kgf/cm2}3. Avoid installation with the suction port towards the bottom of the pump. If the revolution speed will exceed 1800mm-1, provide separate pipingfor shaft side and head size IN ports.4. Specify using the model number format shown below when pipe flange is required.5. Working pressure is continuous operating pressure when the same pressure exists on the head side and shaft side.6. Individual pump perform performance on the head side and shaft side is the same as that of the single pumps. Required power is the sum ofthe power required by each of the two pumps.7. The "Required Power at 1200min-1, 21MPa (kW)" column in the above table are based on combinations that provide the maximum capacityfor each model number, when pressure at both the head side and shaft side is 21MPa. Examples of combinations that provide "the maximumcapacity for each model number" are IPH-22B-8-8-11 for IPH-22B, and IPH-46B-32-125-11 for IPH-46B. A capacity of 125 for all *6B Type 6pumps is used for calculations.•HandlingHandling is in accordance with procedures for the IPH pump. See page C-1 for more information.
