AP Models （single-type variable-pitch pulleys） Specifications

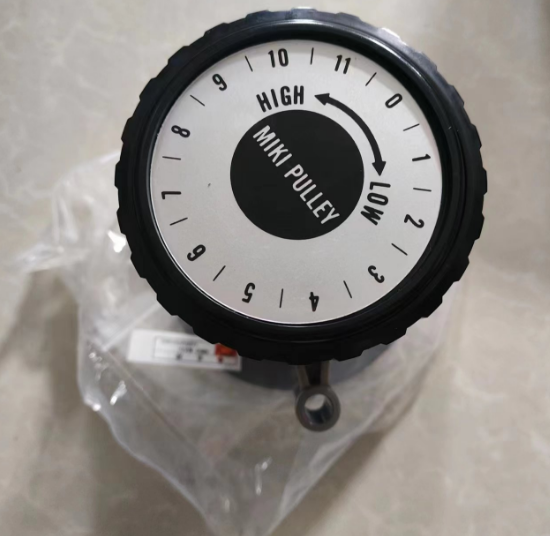

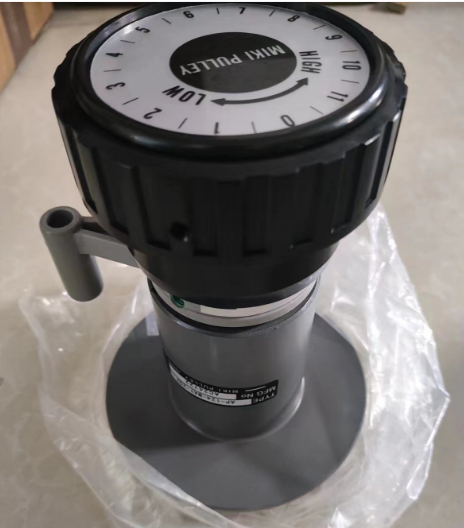

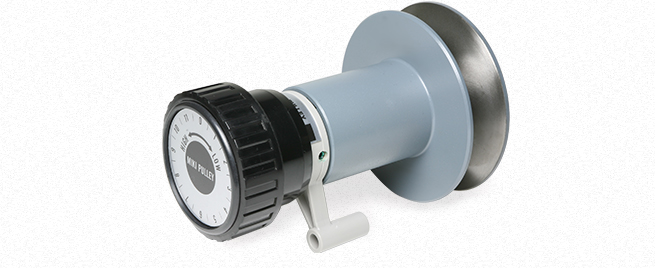

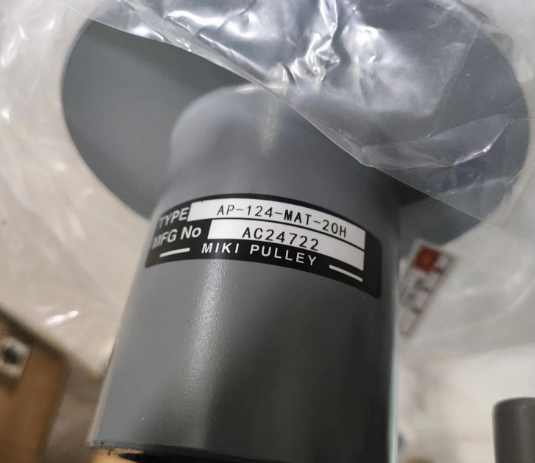

AP Models
[Specifications]
| Model | Motor in use | Driven side speed changer | Belt | Speed change ratio | 50Hz | 60Hz | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Output rotation speed (r/min) | Output torque | Output rotation speed (r/min) | Output torque | |||||||
| ［N・m］ | ｛kgf･m｝ | ［N・m］ | ｛kgf･m｝ | |||||||
| AP-86-MA | 0.2 kW4P | P-86-MA | A | 1:2.2 | 950～2150 | 1.6～0.7 | ｛0.16～0.07｝ | 1140～2590 | 1.4～0.6 | ｛0.14～0.06｝ |
| 0.2 kW4P | P-98-MA | A | 1:2 | 820～1720 | 1.9～0.9 | ｛0.19～0.09｝ | 990～2060 | 1.6～0.8 | ｛0.16～0.08｝ | |
| AP-98-MA | 0.4 kW4P | A | 1:2 | 1000～2050 | 3.1～1.5 | ｛0.31～0.15｝ | 1200～2460 | 2.6～1.3 | ｛0.26～0.13｝ | |
| 0.4 kW4P | P-124 -MA | A | 1:1.9 | 890～1710 | 3.5～1.8 | ｛0.35～0.18｝ | 1070～2060 | 2.9～1.5 | ｛0.29～0.15｝ | |
| AP-124-MA | 0.75 kW4P | P-124-MA | B | 1:2.2 | 950～2150 | 6.1～2.7 | ｛0.61～0.27｝ | 1140～2590 | 5.1～2.3 | ｛0.51～0.23｝ |
| 0.75 kW4P | P-164-MA | B | 1:2 | 810～1660 | 7.2～3.5 | ｛0.72～0.35｝ | 970～2000 | 6.0～2.9 | ｛0.6～0.29｝ | |
| AP-164-MA | 1.5 kW4P | C | 1:2.4 | 920～2230 | 12.7～5.2 | ｛1.27～0.52｝ | 1110～2680 | 10.5～4.4 | ｛1.05～0.44｝ | |
| 1.5 kW4P | P-218-MA | C | 1:2 | 680～1360 | 17.2～8.6 | ｛1.72～0.86｝ | 810～1640 | 14.4～7.1 | ｛1.44～0.71｝ | |
[Belt Number and Distance between Shafts]
| Model | Driven side speed changer | Belt number | |||||
|---|---|---|---|---|---|---|---|
| Distance between shafts［mm］ | |||||||
| AP-86-MA | P-86-MA | A-20 | A-21 | A-22 | A-23 | A-24 | A-25 |
| 153 | 165 | 179 | 191 | 204 | 216 | ||
| AP-86-MA | P-98-MA | A-20 | A-21 | A-22 | A-23 | A-24 | A-25 |
| 143 | 155 | 169 | 181 | 194 | 206 | ||
| AP-98-MA | P-98-MA | A-21 | A-22 | A-23 | A-24 | A-25 | A-26 |
| 147 | 160 | 172 | 186 | 198 | 211 | ||
| AP-98-MA | P-124-MA | A-23 | A-24 | A-25 | A-26 | A-27 | A-28 |
| 163 | 177 | 189 | 202 | 215 | 227 | ||
| AP-124-MA | P-124-MA | B-25 | B-26 | B-27 | B-28 | B-29 | B-30 |
| 168 | 181 | 194 | 206 | 220 | 232 | ||
| AP-124-MA | P-164-MA | B-28 | B-29 | B-30 | B-31 | B-32 | B-33 |
| 190 | 203 | 216 | 228 | 241 | 254 | ||
| AP-164-MA | P-164-MA | C-32 | C-33 | C-34 | C-35 | C-36 | C-37 |
| 211 | 224 | 237 | 249 | 262 | 275 | ||
| AP-164-MA | P-218 | C-38 | C-39 | C-40 | C-41 | C-42 | C-43 |
| 241 | 254 | 267 | 279 | 293 | 305 | ||

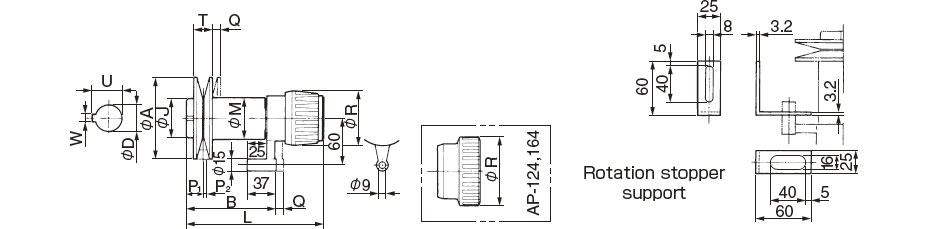

[Dimensions]
Unit ［mm］
| Model | A | B | J | L | M | P1 | P2 | Q | R | T | D | W | U | Max. P.D. | Min. P.D. | Mass ［kg］ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AP-86-MA | 86 | 93 | 46 | 156 | 54 | 18 | 3.5 | 7 | 70 | 18 | 11 | - | - | 77 | 51 | 1.7 |
| AP-98-MA | 98 | 103 | 50 | 166 | 54 | 19 | 3.5 | 7 | 70 | 20 | 14 | 5 | 16 | 89 | 62 | 1.9 |
| AP-124-MA | 124 | 126 | 68 | 196 | 62 | 22 | 5 | 10 | 88 | 24 | 19 | 6 | 21.5 | 113 | 75 | 3.2 |
| AP-164-MA | 164 | 137 | 68 | 211 | 66 | 25 | 7 | 14.5 | 88 | 30 | 24 | 8 | 27 | 150 | 96 | 4.8 |
*Use 1800 r/min or less for the input rotation speed. (The 4-pole motor drive is appropriate)
[Aadapter]
| Model | Bore depth[mm] | Supported shaft diameters (adapter bore)φD [mm] | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 11 | 12 | 13 | 14 | 15 | 16 | 18 | 19 | 20 | 22 | 24 | 25 | ||
| P-86-MA | 30 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
| P-98-MA | 40 | ◎ | ◎ | ◎ | ● | ● | ● | ● | ● | |||||
| P-124-MA | 50 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||
| P-164-MA | 50 | ● | ● | ● | ● | ● | ● | 〇 | 〇 | 〇 | ||||
* Bores marked with symbols above are available. ● , ◎ , and ○ indicate adapter type, and ▲ indicate straight type.
* Adapters indicated as ◎ do not have a keyway. Before using with a shaft having a key, first remove the key.
* ○ indicates model that includes an L key, since adapter specifications prevent a parallel key from fitting. Use this L key when mounting.
* Bore diameters for the L key distinguish between the old JIS and new JIS codes. Specify when ordering.

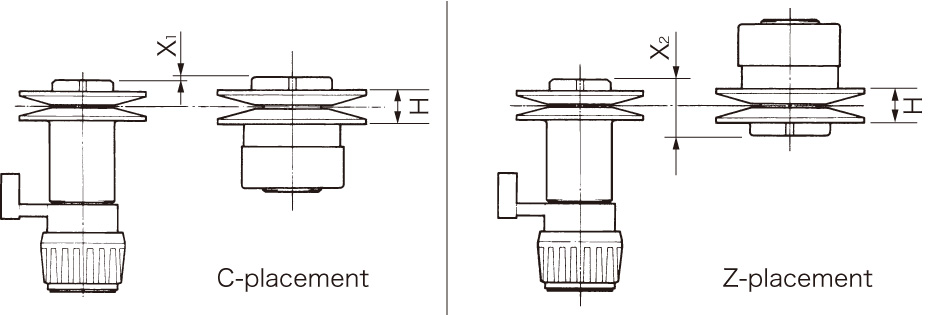

[Placement]
Unit ［mm］
| Combination | AP-86-MA P-86-MA | AP-86-MA P-98-MA | AP-98-MA P-98-MA | AP-98-MA P-124-MA | AP-124-MA P-124-MA | AP-124-MA P-164-MA | AP-164-MA P-164-MA | AP-164-MA P-218 |
|---|---|---|---|---|---|---|---|---|
| H | 25 | 24.5 | 25 | 31 | 34 | 39.5 | 44 | 42.5 |
| C-placement X1 | 0 | 1 | 0 | 3 | 0 | 3 | 0 | 1.5 |
| Z-placement X2 | 39.5 | 40.5 | 41.5 | 44.5 | 49 | 52 | 57 | 58.5 |
