日本CCS标准环形灯LDR2-90-30BL2

Any angle can be created with CCS's unique flexible circuit boards.
The required irradiance is ensured by radiating direct light towards the center of the workpiece.
Product Lineup

Features Characteristics/Data Custom Order Example Imaging Example
Features

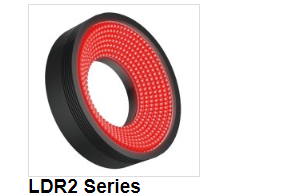

Standard Ring Lights
Uses a flexible circuit board to achieve the functions needed for a Ring Light. It can illuminate workpieces at an angle and can illuminate the whole workpiece. This alleviates the influence of slight position or inclination deviations in the workpiece and enables stable imaging.

Flexible circuit board

Succeeds in greatly reducing LED's heat
Heat dissipation material is used between the board and the aluminum housing, absorbing heat produced by the LEDs. This succeeds in greatly reducing the creation of heat, which causes the LEDs to deteriorate.

Cross-section image of the LDR2-120

Example configuration
Bend the flexible circuit board to any shape necessary and mount LEDs with high density. Illuminates so that direct light is concentrated in the center.

LDR2-90

Product Lineup
FilterClose
LED color
Red
White
Blue
Green
Chassis size (mm)
~ φ50
φ51 ~ φ100
φ101 ~
