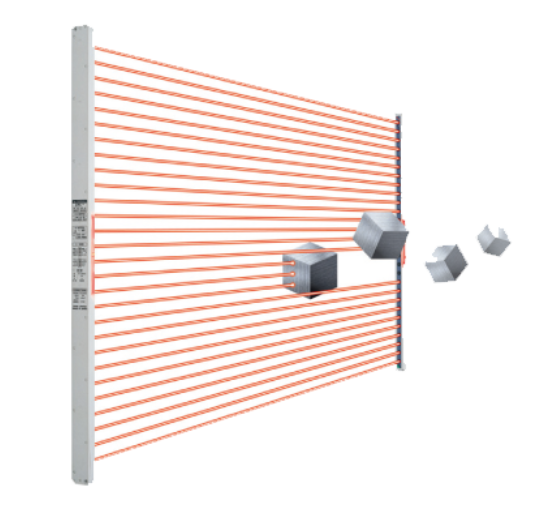

日本panasonic松下安全光栅 SF4D-F31(-01)

 Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Height 220 mm 8.661 in
Sensing Range 5 m 16.404 ft
Beam Pitch 20 mm 0.787 in
Sensing Object dia. 30 mm dia. 1.181 in or more opaque object (completely beam interrupted objects)
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Power Consumption: Emitter: Job Indicator On 0.8 W or less
Power Consumption: Emitter: Job Indicator Off 0.7 W or less
Power Consumption: Receiver: Job Indicator On 0.8 W or less
Power Consumption: Receiver: Job Indicator Off 0.7 W or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Utilization Category DC-12 or DC-13
Output: Output Operation ON when all beam channels are received (OFF when one or more beam channels are interrupted)
Output: Short-Circuit Protection Incorporated
Response Time 10 ms or less (12 ms or less when the interference prevention function is used)
Indicators: Receiver Operation indicator: Red LED (lights up when one or more beam channels are interrupted)
Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)
Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
* When an excess current flows through the output, the stable incident beam indicator and the operation indicator on the receiver blink simultaneously due to operation of the short-circuit protection circuit.
Indicators: Emitter Emitting indicator: Green LED x 2 (light up during emission; one LED lights up for Frequency A setting, both LEDs light up for Frequency B setting)
Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
Interference Prevention Function Incorporated
Test Input (Emission Halt) Function Incorporated
Pollution Degree 3 (Industrial environment)
Protection IP40(IEC)
Ambient Temperature -10 to +55 degrees +14 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -10 to +60 degrees +14 to +140 degrees Fahrenheit
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 870 nm 0.034 mil, modulated) (Note：Peak emission wavelength has been changed from production in March, 2017.)
Material Enclosure: Heat-resistant ABS
Lens cover: Polyester
Indicator cover: Acrylic
Cable 0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long
Cable Extension Extension up to total 25 m 82.021 ft is possible for both emitter and receiver, with 0.2 mm2, or more, cable.
Weight (Total Weight Of Emitter And Receiver) Net weight: 400 g approx.
Gross weight: 600 g approx.
