日本watanabe渡边电机信号变送器WVP-SBS-15S-1
发布时间：2024-04-26
日本watanabe渡边电机信号变送器WVP-SBS-15S-1
Signal Converters

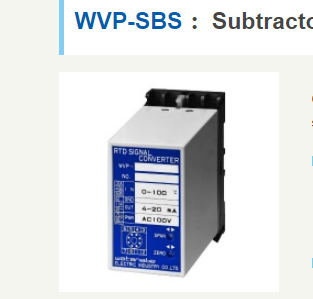

WVP-SBS ：Subtractor
WVP-SBS：Subtractor
10
Converter which outputs DC signal proportional to the difference between 2-channel input signals
Features
・Easy maintenance by plug-in structure
・Wide zero & span adjustment ±10% full scale
Specifications
Input DC voltage/DC current
Output DC voltage/DC current
Power AC100V
AC110V
AC200V
AC220V
DC24V
Accuracy ±0.2%fs
Response time(0→90%) 200ms
Zero-Span adjustment ±10%fs
Dielectric strength AC2000V
Weight Approx.400g
Dimensions(HWD) 97×51×126mm
Operating temperature/humidity -5~+55℃
Lower limit 90%RH
