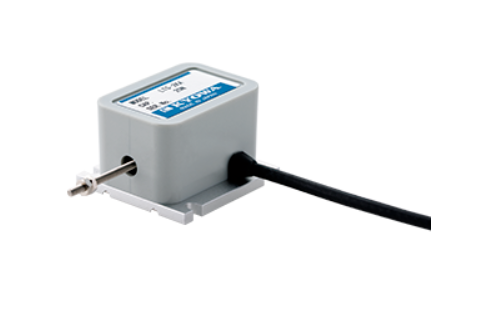

日本共和KYOWA载荷传感器LTS-1500GA
Made in Japan
Manufacturer: Kyowa Electronic Instruments Co., Ltd.
Model: LTS-500GA
• Compact & lightweightFeatures
• High accuracy
• TEDS-installed models are available.Specifications
Performance
Rated Capacity 5 N Nonlinearity Within ±0.5% RO Hysteresis Within ±0.5% RO Repeatability 0.5% RO or less Rated Output 1.5 mV/V or more Environmental Characteristics
Safe Temperature -10 to 70ºC Compensated Temperature 0 to 60ºC Temperature Effect on Zero Within ±0.05% RO/ºC Temperature Effect on Output Within ±0.1%/ºC Electrical Characteristics
Safe Excitation 6 V AC or DC Recommended Excitation 1 to 2 V AC or DC Input Resistance 120 Ω ±10% Output Resistance 120 Ω ±10% Cable 4-conductor (0.05 mm2) chloroprene shielded cable, 3 mm diameter by 1 m long, terminated with a connector plug PRC03-12A10-7M
(Shield wire is not connected to the case.)Mechanical Properties
Safe Overloads 120% Ultimate Overloads 250% Natural Frequencies Approx. 1000 Hz Weight Approx. 50 g (Excluding cable)
