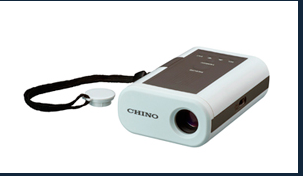

日本CHINO千野测温仪IR-HASNE 600-2000℃
发布时间：2024-05-13
日本CHINO千野测温仪IR-HASNE 600-2000℃日本CHINO千野测温仪IR-HASNE 600-2000℃
日本CHINO千野测温仪IR-HASNE 600-2000℃
Models
| Models | Types and Distance Factors |
|---|---|
| IR-HAI | For single color medium temperature |
| IR-HAS | For single color high temperature |
| IR-HAQ | High function type (2-color type + single color wide range type) |
| IR-VXG2J | Data playback software* |
*Japanese version and English version are available.
Specifications
| Models | For single color medium temperature IR-HAI | For single color high temperature IR-HAS | High function type (2-color type + single color wide range type) IR-HAQ |
|---|---|---|---|
| Measuring Systems | Narrow band radiation thermometer | ||
| Measuring Temperature Range | 300 to 1000°C | 600 to 2000°C | 600 to 2000°C (2-color type)/ 400 to 3000°C (single color wide range type) |
| Detecting Element | InGaAs | Si | Si/InGaAs |
| Measuring Wavelength | 1.55μm | 0.9μm | 0.9/1.55μm |
| Accuracy Rating ε=1.0, 23°C±5°C | ±6℃ | Below 1000°C: ±6°C Below 1000 to 1500°C: ±0.6% of measured value 1500°C or more: ±1.2% of measured value | Below 1000°C: ±6°C Below 1000 to 1500°C: ±0.6% of measured value Below 1500 to 2000°C: ±1.2% of measured value 2000°C or more: ±2.4% of measured value |
| Repeatability | Within ±1°C | ||
| Resolution | 1°C | ||
| Response Time | 0.2s | ||
| Measuring Distance and Measuring Diameter | φ20/4000mm | ||
| Focusing System for Spot | Direct viewing finder (switch) | ||
| Display | LCD digital 4-digit, Inside the viewfinder and display on the exterior | ||
| Data Storing Function | SD card 2GB or less | ||
| Emissivity Compensation | 0.100 to 1.900 (0.01 step) | 0.80 to 1.200 (2-color: emissivity) /0.100 to 1.900 (single color) | |
| Working Temperature Range | 0 to 50°C | ||
| Power Supply | AA (R6) battery, 2 pieces or AC power supply adaptor | ||
| External Dimensions/ Weight | W150×H100×D50mm, Approx. 500g (main unit only) | ||
Thermocouples
 |  |
