日本Magnescale探规传感器DK812SBLR5
发布时间：2024-05-21
日本Magnescale探规传感器DK812SBLR5
Product TOP

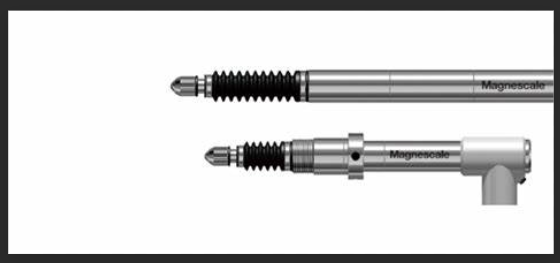

Slim shape with stem diameter of Φ8 mm and high durability ball spline bearing.
Our unique signal processing technology enables measurements that require high accuracy and real-time performance.
Measuring range: 5 mm, 12 mm, 30 mm
Maximum resolution: 0.1 µm, 0.5 μm
Accuracy: 1 µm p-p to 1.7 µm p-p (Depends on the model)
Maximum response speed: 80 m/min (resolution 0.1 µm), 250 m/min (resolution 0.5 µm)
Bearing structure: Improved sliding performance through the use of highly durable ball spline bearings
High durability: 320 million sliding cycles or more (under continuous evaluation as of January 2021)
Protection grade: IP67 (straight type / right angle type with air tube)
Built-in reference point
Output signal: A/B/reference point (Voltage-differential line driver output)
Flange type is also available for strong fixing.
